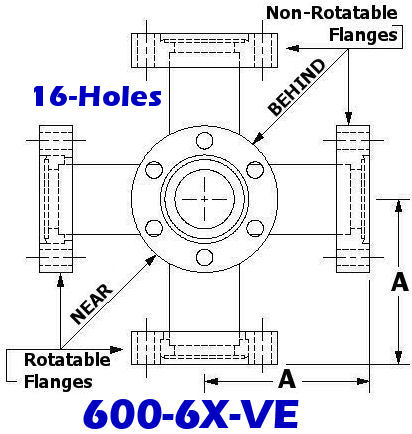

6.00" OD Conflat Flange <br> Six-Way Cross <br> (600-6X-VE)

600-6X-VE
6 WAY CROSS
6.00" OD CF Conflat Flange
• OD Polish
• 304 Stainless
Vacuum Essential

6.00" OD Conflat Flange (CF):
• 4" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal

High Vacuum & Ultra High Vacuum (UHV)
Six Way Conflat Cross Fitting

Vacuum Essentials (-VE) Include:
600-400-6X, Bolt Kits and Copper Gaskets
600-400-6X-VE



6.00" OD Conflat Series Hardware		6-Way Crosses, Conflat Series



6-WAY CUBES		All Conflat Crosses

**This Vacuum Essential Includes**
• 6-WAY CROSS: 600-400-6X
• 6-Bolt Kits (600-BK Series)
• 10-Copper Gaskets (600-CG Series)
