NW16 Wing Clamp
Aluminum Die Cast
Fits Tube Sizes: 0.50" or 0.75"

Aluminum Wing Nut Clamp
Die Cast Aluminum Hinge Klamp
Fits: NW16, NW10 (KF16, KF10)

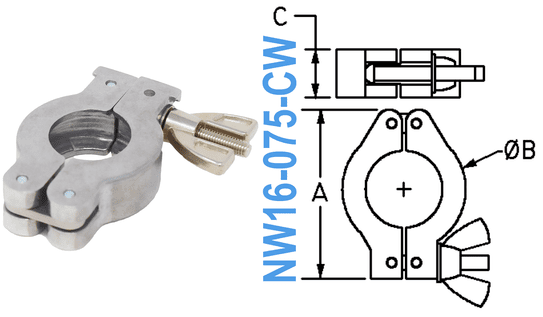

• NW10 & NW16 Flange OD: Ø1.18"
• A: 2.45"
• B: 1.59"
• C: 0.65"
Fits Both NW10 & NW16 Series Flanges
(KF10 & KF16)

NW10 High Vacuum Hardware Equivalents
KF10, KF-10, K050, NW-10, QF10, ISO-QF, Klamp

NW16 High Vacuum Hardware Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF
NW16-075-CW Compare to: KQ16AWP 701000 QF16-075-C 100312901 P101198 NW-16-CP 4040000 QF10/16-CW P106714 18341 4518K711 Hinged QF10/16-WNC-AL NW16-CW-PK10

Aluminum Wing Clamp
Fits: NW10 & NW16

NW16-075-CWPrice: $12.92Sale: $6.00

Click to enlarge
Click to enlarge
Order 10 Pack!

CW Wing Nut Replacements

Click to enlarge
Click to enlarge
All NW10 Hardware

All NW16 Hardware

Click to enlarge
Click to enlarge
NW10 Centering Rings

NW16 Centering Rings

Click to enlarge
Click to enlarge
NW10 Ring & Clamp Assembly

NW16 Ring & Clamp Assembly

Click to enlarge
Click to enlarge
Adaptive Centering Rings
(NW16 to NW10)

NW10 & NW16 Clamps (All Types)
