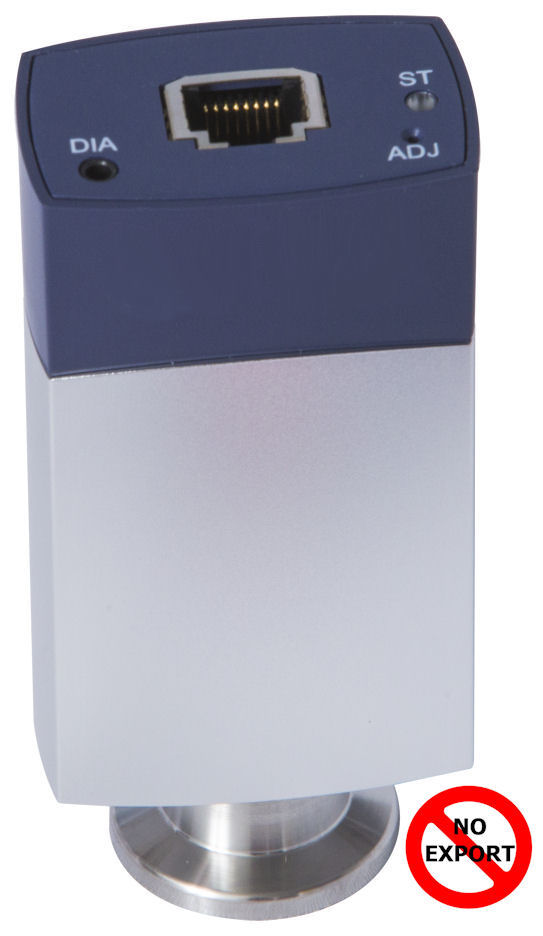

Click to enlargePCG550 Combo Gauge
Pirani & Capacitance Diaphragm Gauge (CDG)
NW16 Port

PCG550-NW16
Measures from: 3.8 x 10-05 to 1125 Torr
Pirani and Capacitance Diaphragm Gauge (CDG)
NW16 (KF16) OD: Ø1.18"
NW16 Centering Ring Counter Bore: 0.68"

• Inficon PCG 550 Combination Vacuum Gauge
• Pirani & Capacitance Manometer (3PC1-001-0000)
• Mounts in any orientation
• Selectable output signal for easy integration
• Tungsten Filament
• NO Setpoint
• Cable: FCC68 Series

• Gas type independent above 10 mbar
(Allows safe venting with any gas mixture)

Accuracy:
±2.5% from 712 to 787 Torr
±5% between 75 and 712 Torr
±15% of reading between 7.5x10-4 and 75 Torr
Non-Surplus, Standard Inventory
EXPORT PROHIBITED

TTR101 (TTR 101) Drop In Replacement


PCG550 Combo Gauge Pirani and Capacitance
NW16 Port
(PCG550-NW16)

PCG550-NW16$624.00

Click to enlarge
Click to enlarge
All NW16 Hardware


NW16 (KF16) UHV Conversion Hardware


Click to enlarge
Click to enlarge
VGC501 Single Head Controller


VGC502 Dual Head Controller


Click to enlarge
Click to enlarge
VGC503 Triple Head Controller


10' Foot Cable - FCC68 Series Cable


Click to enlarge
Click to enlarge
15' Foot Cable - FCC68 Series Cable


25' Foot Cable - FCC68 Series Cable



Export of This Vacuum Technology is PROHIBITED
Reason for Control:
• Nuclear Nonproliferation (NP)
• Anti-Terrorism (AT)
Capacitance Diaphragm Gauges, Capacitance Manometers, Baratrons, Including Support Products
(CDG, Pressure Transducers)
Are EXPORT CONTROLLED & NOT available for purchase to customers outside the United States
OR to US customers where this equipment has a final destination outside the United States.

Customers not meeting this criteria must purchase directly from the manufacturer.


The International Emergency Economic Powers Act and US Export Administration Regulations
PROHIBITS The Export Of This Vacuum Technology

Capacitance Diaphragm Gauges, Capacitance Manometers, Baratrons, Including Support Products
(CDG, Pressure Transducers)
• Classification 2B230 under Export Administration Regulations (EAR).

Reason for Control:
Nuclear Nonproliferation (NP) and Anti-Terrorism (AT).
