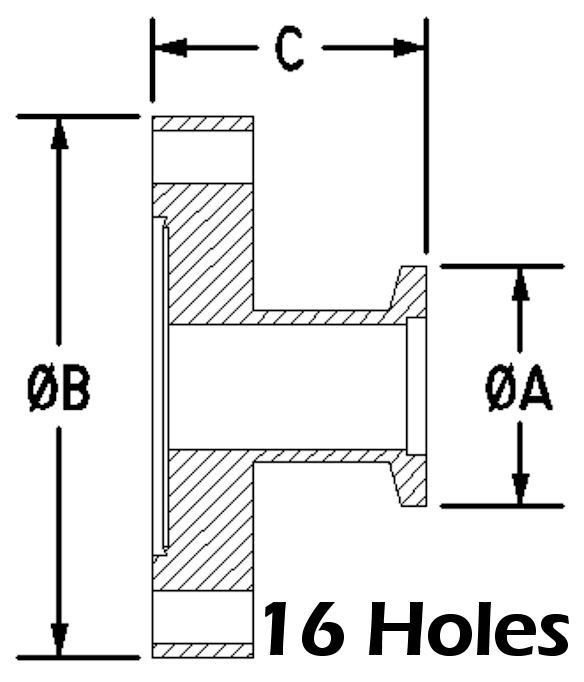

Click to enlargeNW50 to 6.00" OD CF
Tube OD: 2"
A: 2.95"
B: 6.00"
C: 2.02"
1.87" Nominal ID
*Vacuum Essential*



NW50x600-VE
NW50 (KF50) to 6.00" OD Conflat Flange (CF)
Vacuum Essential

NW50xDN100CF, KF50xDN100CF, DN100CFxNW50
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter (600xNW50)

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF



6.00" OD Conflat Flange (CF):
• Non-Rotatable
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal
600xNW50-VE KF50x600-VE 600xKF50-VE Del Seal CF to Kwik-Flange KF


NW50 to 6.00" Conflat
Straight Reducer
(NW50x600-VE)

NW50x600-VE$312.00

Click to enlarge
Click to enlarge
All NW50 Hardware


6.00" OD Conflat Series Hardware



**This Vacuum Essential Includes**
Straight Reducer, NW50x600
1-Aluminum Wing Clamp (NW50-200-CW)
1-Stainless/Viton Centering Ring (NW50-200-SR-V)

1-Bolt Kit, Fits: 6.00" OD Conflat (600-BK)
10 Copper Gaskets, Fits: 6.00" OD Conflat (600-CG)

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
