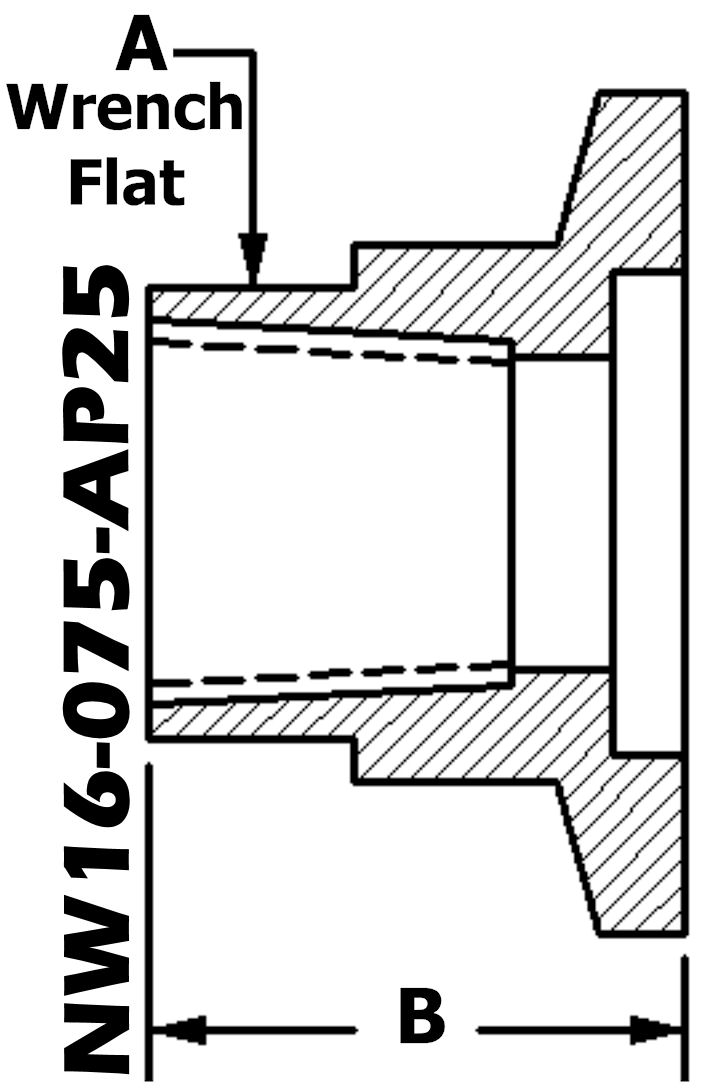

Click to enlargeNW16 To 1/4" Female NPT
A: 0.62"
B: 0.75"
Aluminum

NW16-075-AP25
NW16 to 1/4" Female NPT Adapter

• Adapter KF16 to 1/4 in. NPT-F Pipe
• NW16 Female National Pipe Thread (FNPT)
• Use with Teflon Tape
• 6061 T6 Aluminum Adapter

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF
NW16-075-AP25 Compare to: QF16XAP25 QF16XFNPT4A 100312201 KAFP160250A NW16-AP25-VE


NW16 To 1/4" NPT (Female)
NW16-075-AP25

NW16-075-AP25Price: $94.00Sale: $14.00

Click to enlarge
Click to enlarge
NW Female NPT


All NW16 Hardware


Click to enlarge
Click to enlarge
Teflon Tape


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW16 Male NPT (Stainless)


NW16 Male NPT (Aluminum)



NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

**NW16 Flange Accessories Available Below**
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
The logos and/or trademarks appearing on this page are not owned by or registered to LDS but, rather, designate products sold by LDS, and are owned and/or registered to the manufacturers or suppliers of the products.

NW10 to NW16 High Vacuum Flange OD

NW10 (KF10) OD: 1.18" – Centering Ring Counter Bore: 0.48"

NW16 (KF16) OD: 1.18" – Centering Ring Counter Bore: 0.68"

Need NW10? Order NW10 to NW16 Adaptive Centering Rings
