NW16 Manual Inline Valve
Vacuum Essential

MIV-NW16-VE
NW16 (KF16) Manual Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
Vacuum Essential

• High Vacuum Valve
• Offset In-Line Poppet Valve
• Viton (FKM) Seals

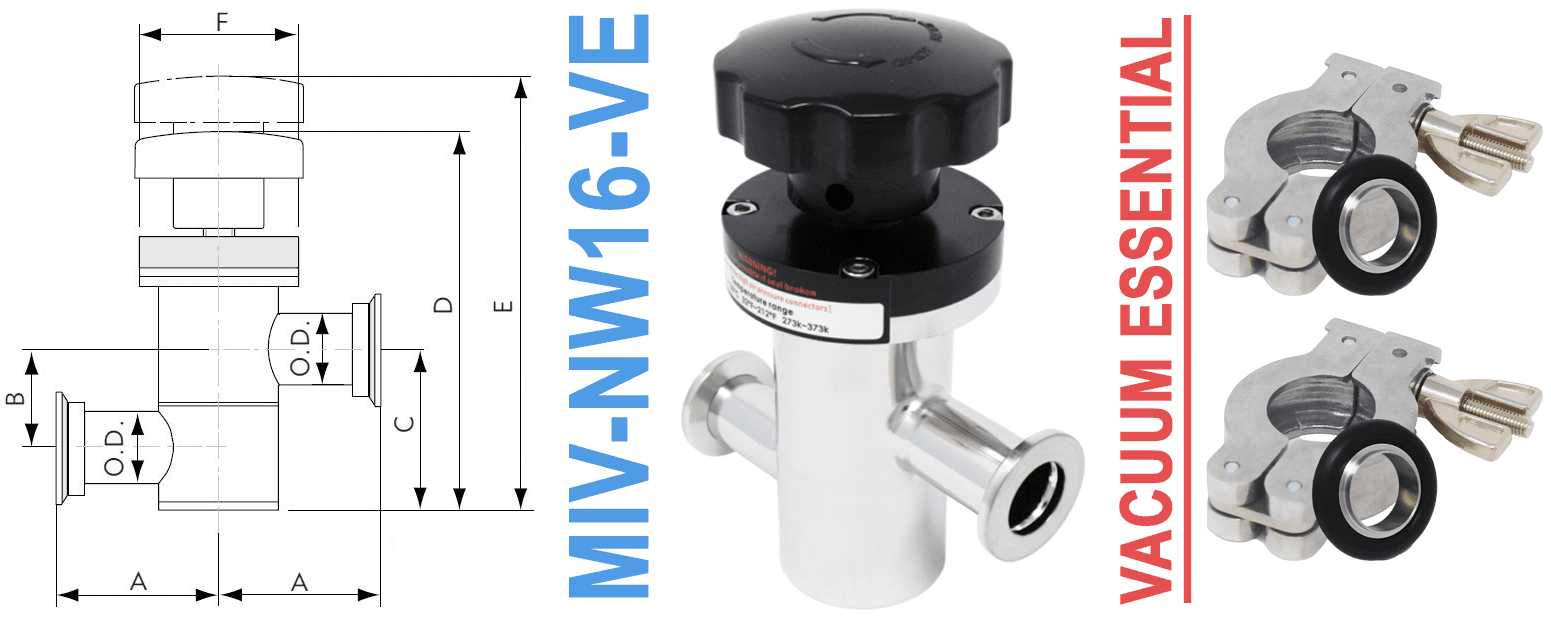

• A: 2.14"
• B: 1.14"
• C: 1.88"
• D: 5.27"
• E: 6.13"
• F: 2.39"

NW16 Flange OD: Ø1.18"
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF


NW16 Manual Inline Vacuum Valve
(MIV-NW16-VE)

MIV-NW16-VE$340.00

Click to enlarge
Click to enlarge
All NW16 Hardware


NW Valves (ALL)



NW16 Flange OD: Ø1.18"
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

***This Vacuum Essential Includes***
NW16 Manual Inline Valve MIV-NW16
2-Aluminum Wing Clamps (NW16-075-CW)
2-Stainless/Viton Centering Rings (NW16-075-SR-V)
