Click to enlargeNW40 To NW16
Straight Reducer

NW40x16-VE
NW40 to NW16 (KF40 to KF16)
Straight Reducer (Reducing Nipple)

• 304 Stainless
• 1.70" OAL
Vacuum Essential

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF


NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Flange to Flange Adapter Fitting


NW40 To NW16 Reducer
(NW40x16-VE)

NW40x16-VE$59.00

Click to enlarge
Click to enlarge
All NW16 Hardware


All NW40 Hardware


Click to enlarge
Custom Adapters & Nipples



NW16 Flange OD: 1.18"
NW40 Flange OD: 2.18"

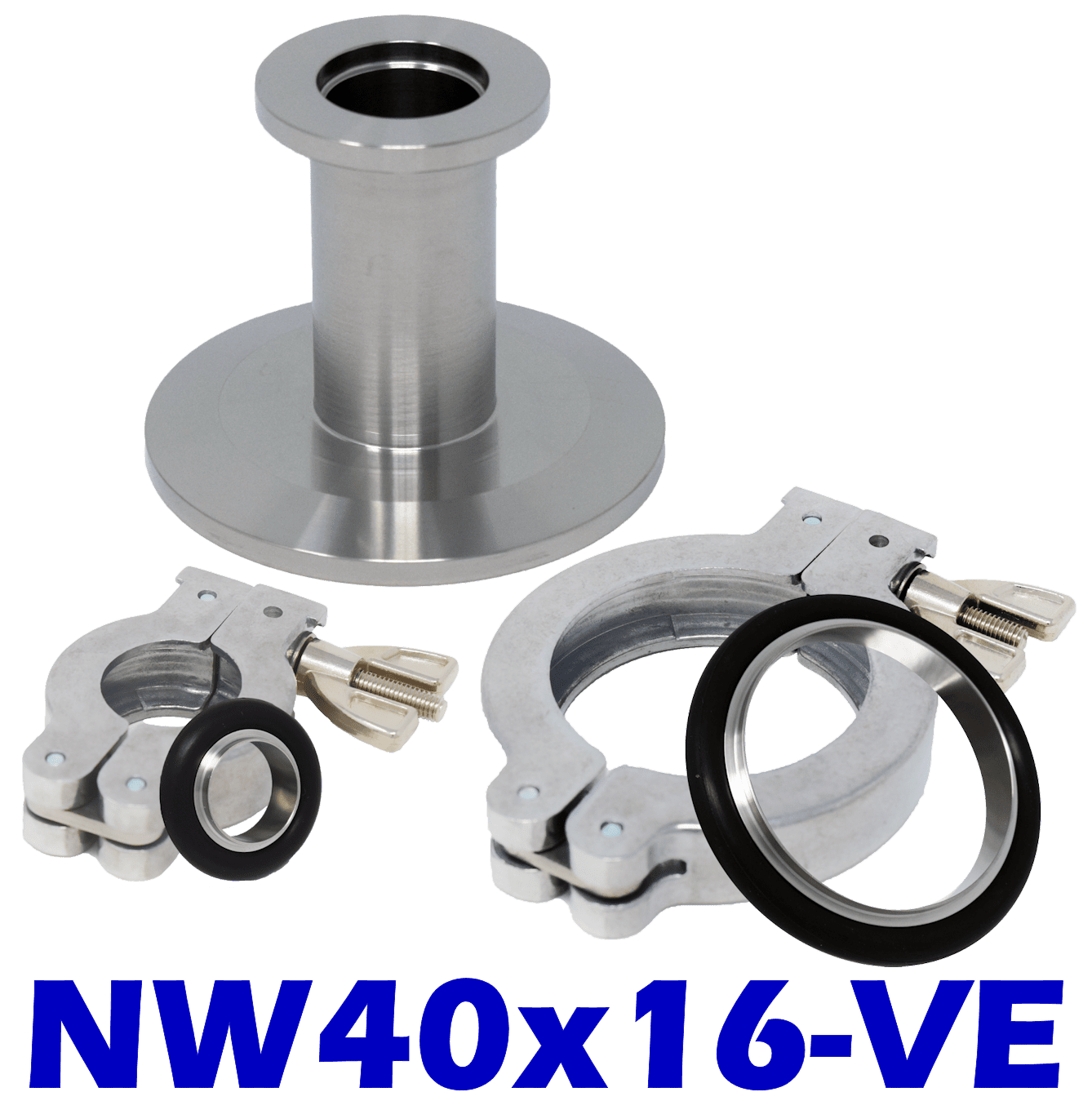

**This Vacuum Essential Includes**
NW40x16

Aluminum Wing Clamps, 1 Each
(NW16-075-CW)
(NW40-150-CW)

Stainless/Viton Centering Rings, 1 Each
(NW16-075-SR-V)
(NW40-150-SR-V)
