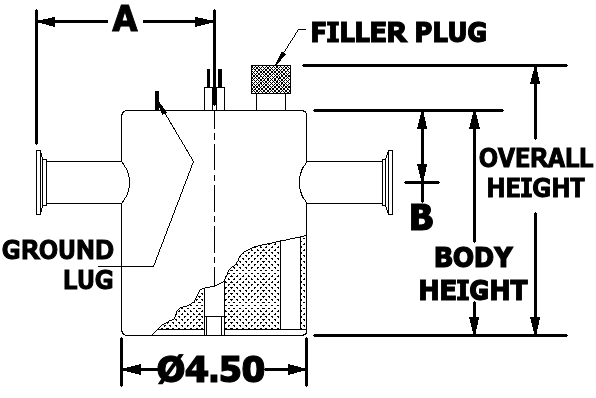

NW16 Molecular Sieve Trap
Overall Height: 7.00"
A: 3.63"
B: 3.50"

MST-NW16x4-R2
NW16 Molecular Sieve Trap

• NW16 (KF16) Vacuum Flange OD: Ø1.18"
• 4" diameter trap heater rates at 120V, 125W
• Integral 115VAC regeneration heater
• Tumble Finish
Includes 1 lb. of sieve material (1/8" zeolite pellets)

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF


Molecular Sieve Trap NW16
(MST-NW16x4-R2)

MST-NW16x4-R2$525.00

Click to enlarge
Click to enlarge
Additional Zeolite Pellets
1 lb Included With New Trap Purchase



All NW16 Hardware


Click to enlarge
Molecular Sieve Traps



NW10 to NW16 High Vacuum Flange OD

NW10 (KF10) OD: 1.18" Centering Ring Counter Bore: 0.48"

NW16 (KF16) OD: 1.18" Centering Ring Counter Bore: 0.68"

Need NW10? Order NW10 to NW16 Adaptive Centering Rings

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps
