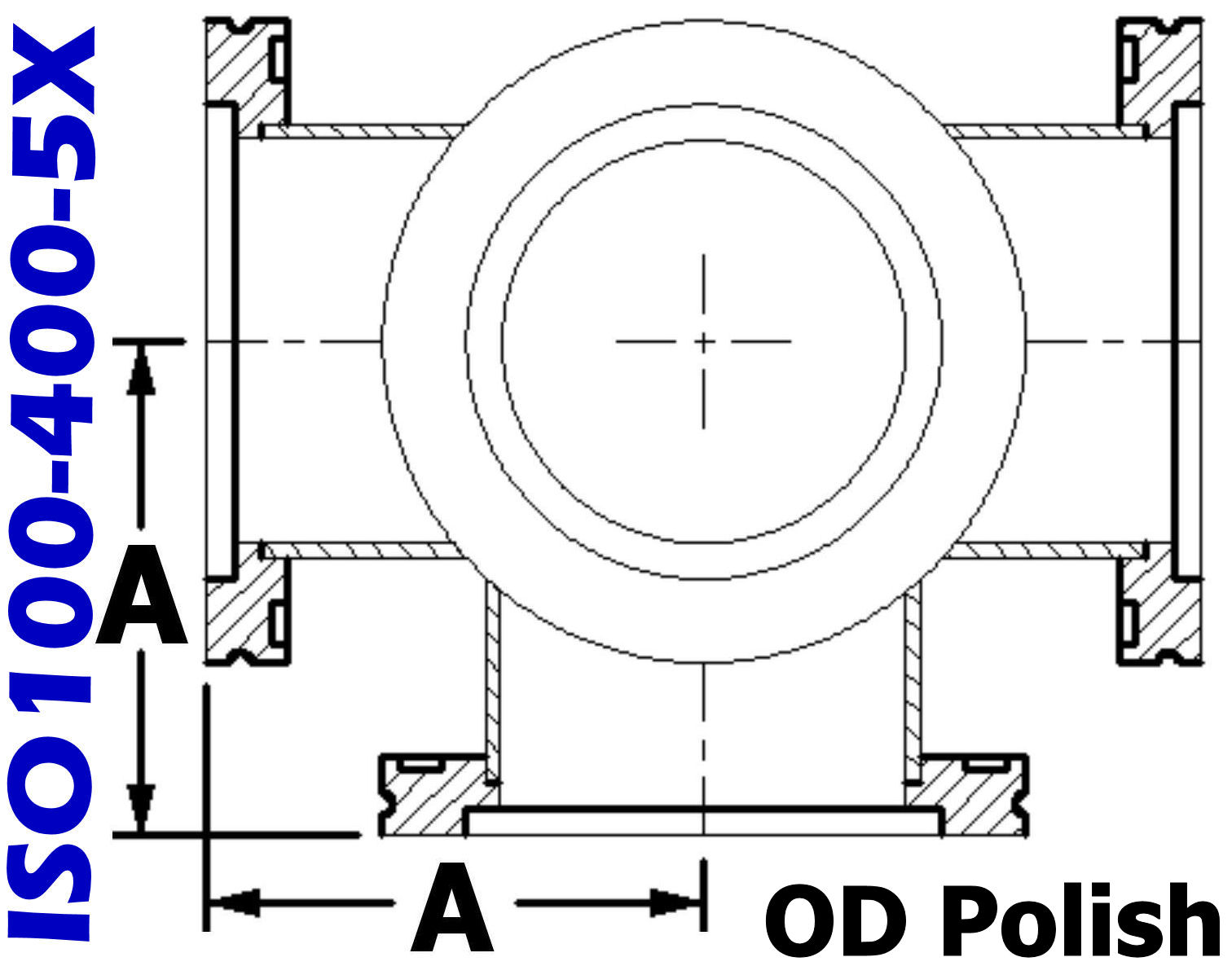

5-Way Cross, ISO100 Ports
A: 4.12"

ISO100-400-5X
5 WAY CROSS, ISO100
OD Polish

• 304 Stainless
• 13 lbs.

ISO100 (ISO-K) Series
• High Vacuum Flange OD: Ø5.12"
• Tube OD: 4.00"
• ISO-K Claw Clamp Style

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange,
ISO-LF, ISO-K, ISO-MF

High Vacuum Five Way Cross
ISO100-400-5X Compare to: QF100-5XK 826001 L400-5 5C-ISO-100-OF 4500330 LF100-400-5X ISO100-400-5X-1 ISO100-5X


ISO100 Cross, 5-Way
(ISO100-400-5X)

ISO100-400-5XPrice: $1,180.00Price Drop: $698.00

Click to enlarge
Click to enlarge
ISO100 Series Hardware


All ISO Crosses



*Don't Forget Your ISO100 Series Accessories*
ISO Series Claw Clamps
ISO100 Centering Rings
ISO100 Plastic Caps
