Click to enlarge

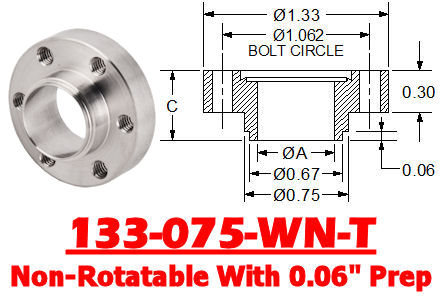

1.33" OD Mini Conflat Flange
Non-Rotatable

133-075-WN-T
• 1.33" OD Conflat Bored Blank
• Fits: 0.75" Tube OD
• Weld Neck with 0.06" Prep

• Non-Rotatable
• 6 TAPPED Holes (8-32 Thread)
• A: 0.63"
• C: 0.56"

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF
133-075-WN-T Compare to: F0133X075NTW 133-075NKT 5000016 F01330075NT4W CF133T-075-WN F133075T 130004


1.33" OD CF Bored Blank
0.75" Tube OD
(133-075-WN-T)

133-075-WN-TPrice: $33.00Price Drop: $18.00

Click to enlarge
Click to enlarge
1.33" OD Conflat
Non-Rotatable
Weld Neck Series



1.33" OD Conflat
Rotatable
Weld Neck Series



Click to enlarge
Click to enlarge
1.33" OD Conflat Series Hardware


1.33" OD Conflat
Double Sided Flanges



Click to enlarge
Click to enlarge
1.33" OD Conflat
Non-Rotatable Series



1.33" OD Conflat
Rotatable Series




**1.33" OD Conflat Flange Accessories Below**
1.33" OD Conflat TAPPED Bolt Kits
1.33" OD Conflat - Copper Gaskets
1.33" OD Conflat - Viton Gaskets
1.33" OD Conflat - Plastic Caps
