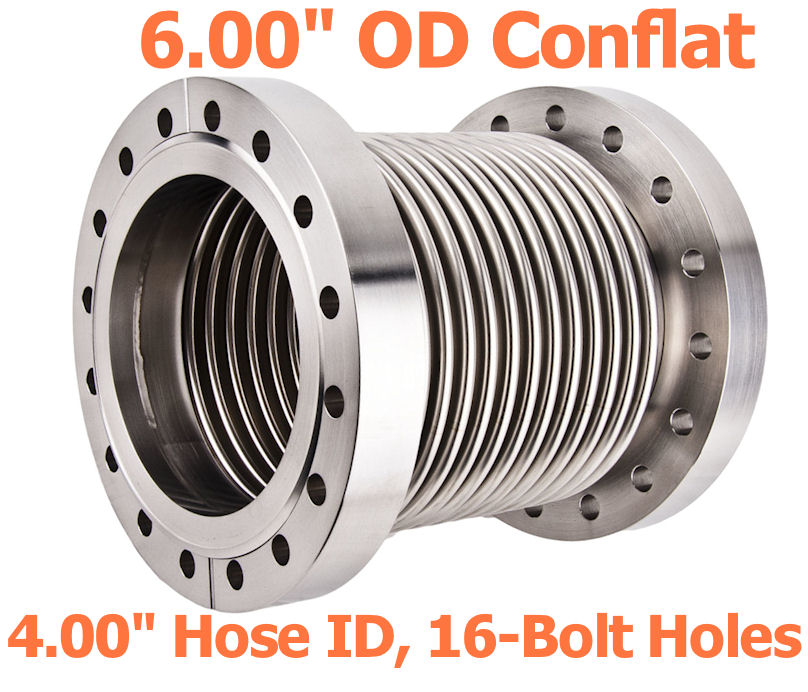

Click to enlarge6.00" OD Conflat Flexible Metal Hose
20" OAL
Thin Wall

600-MH20-VE
6.00" OD Conflat Flange (CF) Series
20" OAL CF Flexible Metal Hose (Bellows)
Vacuum Essential

• 0.010" Wall Thickness (Thin)
• 1 Rotatable Conflat Flange
• 304 Stainless Steel
• Hydraulically Formed Ultra-High Vacuum (UHV) Bellows
• Special Lengths Available

6.00" OD CF Conflat Flange (CF)
• Ø4" Hose ID
• 16 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
Compare to: 600-MH20


6.00" Flexible Metal Hose 20" OAL
(600-MH20-VE)

600-MH20-VE$732.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


All 6.00" CF Metal Hose



**This Vacuum Essential Includes**
• 6.00" OD Conflat Flexible Metal Hose
• 2-Bolt Kits (600-BK Series)
• 10-Copper Gaskets (600-CG Series)
