6.00" OD Conflat Flange <br> Full Nipple, 8.64" OAL <br> 600-N-VE

600-N-VE
6.00" OD Conflat Full Nipple
8.64" OAL, Medium Length

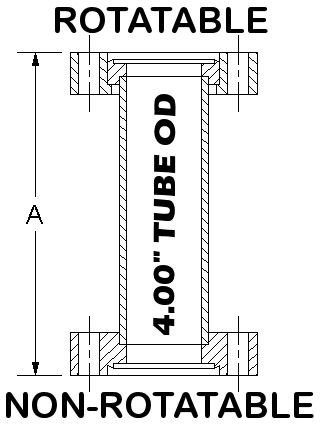

DN100CF Non-Rotatable & Rotatable Flanges
Vacuum Essential
• 304 Stainless
• OD Polish

6.00" OD Conflat Flange (CF):
• UHV Ultra High Vacuum Flanges
• 4.00" Tube OD
• 16 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal
600-400-N 600-400-N-VE



6.00" OD Conflat Series Hardware		Custom Adapters and Nipples

**This Vacuum Essential Includes**
• 6.00" OD Conflat FULL NIPPLE
• 2-Bolt Kits (600-BK Series)
• 10-Copper Gaskets (600-CG Series)
