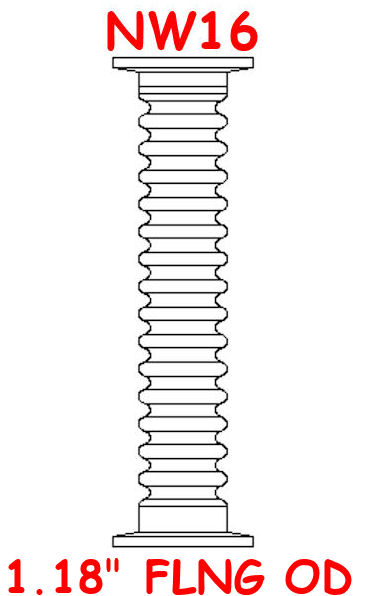

Click to enlargeNW16 Flexible Metal Hose
Medium Wall (0.008")
36" OAL

NW16-075-MH36M
NW16 to 36" Flexible Metal Hose (Bellows)
36" OAL

• Nominal Hose ID: 3/4"
• KF16 Flexible Metal Hose (Bellows)
• Roughing Components
• Vacuum Roughing Hose
• 304 Stainless Steel Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• NW16 Flexible Coupling (Nipple)
• Medium (Thick) Wall Thickness: 0.008"

NW16 (KF16) Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

Image Shown For Reference Only
NW16-075-MH36M Compare to: 0800041 QF16-075-MH-36.0 NW16-075-MH36T NW16-075-MH36-T NW16-075-MH36-M NW16-075-MH36M-VE NW16-MH36M-VE FH-075-36-2NW MH-QF-A36 NW16-MH36T-VE


36" Flexible Metal Hose
(NW16-075-MH36M)

NW16-075-MH36M$189.00

Click to enlarge
Click to enlarge
Medium/Thick Wall
Additional Lengths, NW16



Thin Wall
Additional Lengths, NW16



Click to enlarge
All NW16 Hardware



NW10 to NW16 High Vacuum Flange OD

NW10 (KF10) OD: 1.18" Centering Ring Counter Bore: 0.48"

NW16 (KF16) OD: 1.18" Centering Ring Counter Bore: 0.68"

Need NW10? Order NW10 to NW16 Adaptive Centering Rings

NW16 Flange OD: Ø1.18"
• Nominal Hose ID: 3/4"
• NW16 Centering Ring Counter Bore: 0.68"

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps
