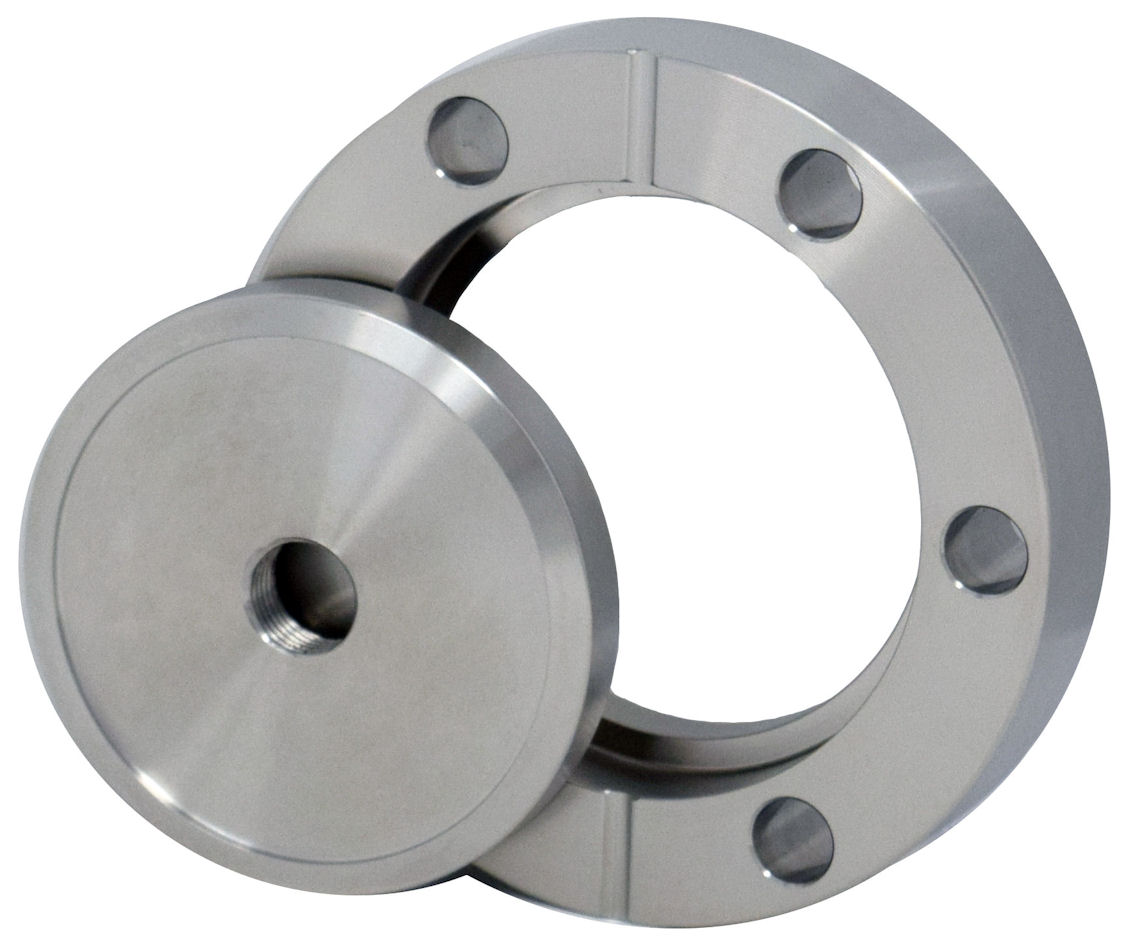

Click to enlarge2.75" CF to 1/4" NPT Female Tapped Center

275Rx25NPT-F
2.75" OD Conflat to 1/4" NPT Female
Rotatable Adapter
• 304 Stainless
• Center Tap
• F-NPT Female National Pipe Thread

Image(s) Shown For Reference Only

2-3/4" OD CF Conflat Flange:
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF


2.75" OD Conflat To 1/4" Female NPT
(275Rx25NPT-F)
275Rx25NPT-F$69.00
