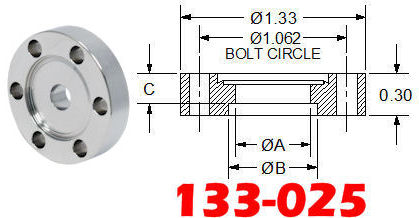

Click to enlarge1.33" OD Conflat Flange
Non-Rotatable
6-Thru Holes (0.172")
0.25" Tube OD

133-025
1.33" OD CF Bored Conflat Flange
1/4" Bore Size

• A: 0.255"
• B: -
• C: -

1-1/3" OD CF Conflat Flange
• 6 Clearance (Thru) Holes (0.172" Diameter)

• Non-Rotatable
• 304 Stainless
• Weld Flange (Bored Blank)

1.33" OD CF Conflat Flange Equivalent Names
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF

1.33" Conflat to 1/4" Bored Blank, Non-Rotatable with Clearance Holes
High Vacuum and Ultra High Vacuum (UHV) Flanges

133-025 Compare to: F01330025NC4 133-025N F0133X025N 5000003 133-025 F133025 110001 P108279


1.33" OD CF Bored Blank
0.25" Tube OD
(133-025)

133-025Price: $19.00Sale: $12.00
