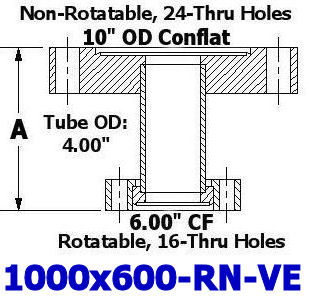

Click to enlarge10" CF to 6.00" CF
Straight Reducing Nipple
A: 5.00"

1000x600-RN-VE
10" Conflat to 6.00" Conflat Straight Reducer
Vacuum Essential

• 1000x600 CFF (DN200CFxDN100CF)
• 4" Tube OD
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Straight Reducing Nipple

6.00" OD Conflat Flange (CF):
• Rotatable
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF


10.00" OD Conflat Flange (CF):
• Non-Rotatable
• 24-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

10" OD Conflat Flange (CFF) Equivalents:
CF200, CF1000, DN200CF, NW200CF, 1000CF
1000x600-VE 600x1000-RN-VE 600x1000-VE


10.00" CF to 6.00" CF
Straight Reducing Nipple
1000x600-RN-VE

1000x600-RN-VE$966.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


10" OD Conflat Series Hardware


Click to enlarge
Click to enlarge
CF to CF Straight Reducers


CF to CF Conical Reducers


Click to enlarge
Click to enlarge
CF to CF Zero Length Reducers


Custom Adapters and Nipples



**This Vacuum Essential Includes**
• Flange to Flange Adapter
• 1-Bolt Kit (600-BK Series)
• 10-Copper Gaskets (600-CG Series)

• 1-Bolt Kit (1000-BK Series)
• 10-Copper Gaskets (1000-CG Series)
