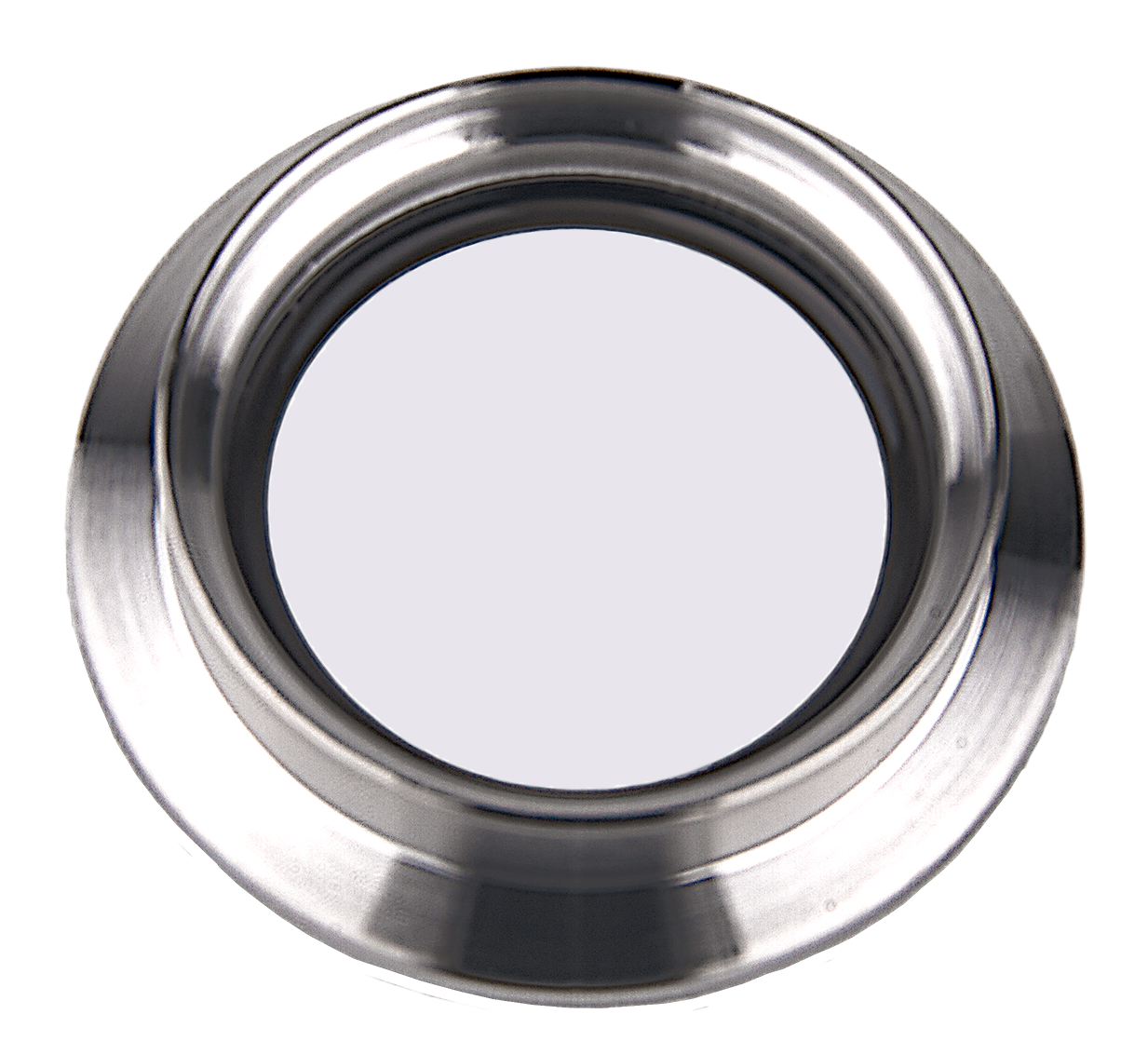

Click to enlargeNW Series Viewports
New Style

Glass Viewports
• NW, QF, KF Series
• Kodial Glass Viewport
• Alkali Borosilicate 7056
• NOT Rated For Pressure


Caution Is Required When Using This Product



NW16 Viewport

$140.00
NW25 Viewport

$140.00
NW40 Viewport

$145.00
NW50 Viewport

$170.00

LDS NW Series Viewports
• Optical discs are Kodial Glass (alkali borosilicate 7056)
• 304 Stainless

Bakeout to 200°F
• due to elastomeric fluorocarbon o-ring seal
• heating rate should not exceed 2-3° per minute

BEFORE You Begin, INSPECT THE VIEWPORT


Caution Required When Using Viewports
• Viewports are rated for Vacuum NOT Pressure

• All viewports are fragile and must be handled and mounted with extreme caution

• NEVER use a viewport that appears to be, or is known to be damaged

• Never scratch the viewing area; a weakened viewport may implode (or explode) under wrong conditions.

• Make sure the glass chosen has a reasonable transmission at the wavelengths of interest.

• Remember, what is not transmitted may be reflected or absorbed.

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
