NW25 Glass Viewport <br> NW25-100-ZVP

NW25-100-ZVP
NW25 Kodial Glass Viewport
NW, KF, QF and ZVP Series
Rated for Vacuum NOT Pressure

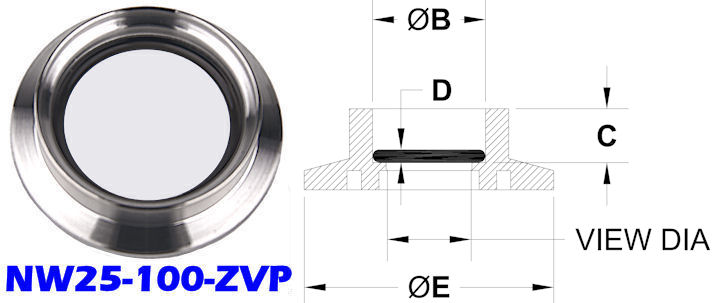

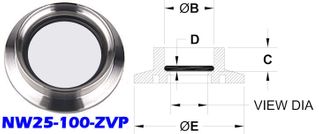

• A: 0.63"
• B: 0.75"
• C: 0.33"
• D: 0.06"
• E: 1.57"
• Viewing Area: 0.96"

• NW25 (KF25, QF25) Flange OD: Ø1.57"
Kodial Glass (alkali borosilicate 7056)

NW25 Series Viewports
• Optical discs are Kodial Glass (alkali borosilicate 7056)
• 304 Stainless

Bakeout to 200°C
• due to elastomeric fluorocarbon o-ring seal
• heating rate should not exceed 2-3° per minute

BEFORE You Begin, INSPECT THE VIEWPORT

Caution Required When Using Viewports
• Viewports are rated for Vacuum NOT Pressure

• All viewports are fragile and must be handled and mounted with extreme caution

• NEVER use a viewport that appears to be, or is known to be damaged

• Never scratch the viewing area; a weakened viewport may implode (or explode) under wrong conditions.

• Make sure the glass chosen has a reasonable transmission at the wavelengths of interest.

• Remember, what is not transmitted may be reflected or absorbed.
