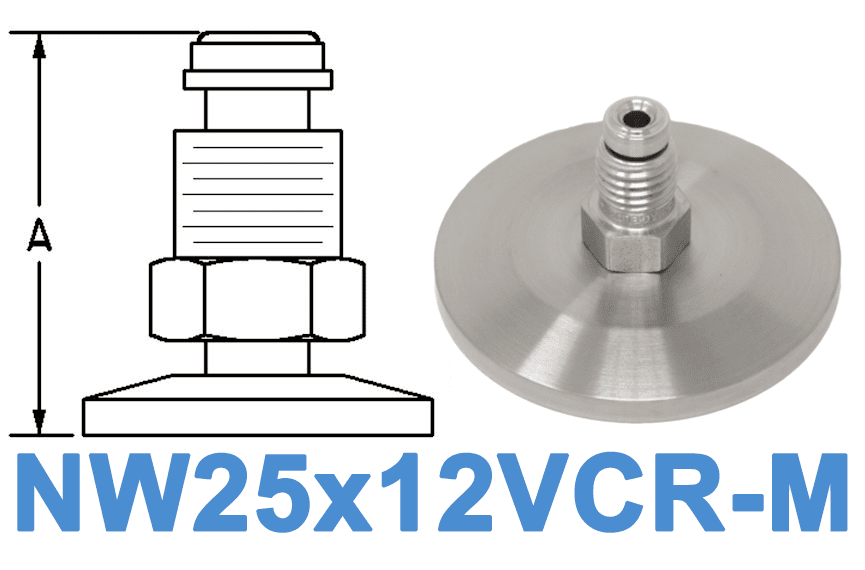

Click to enlargeNW25 to 1/8" VCR, Male 1/8" Tube OD 0.85" Overall Length

NW25x12VCR-M
• NW25 to 1/8" (0.12") Male VCR Adapter
• NW25 to Male 2 VCR (VCR2)
• 304 Stainless

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
NW25x12VCRM QF25X2MVCR QF25X12VCR-M 4000296 QF25XMVCR12-1.05


NW25 to 1/8" VCR, Male
(NW25x12VCR-M)
NW25x12VCR-M$72.00

Click to enlarge
Click to enlarge
All NW25 Hardware


VCR Copper Gaskets


Click to enlarge
Click to enlarge
NW VCR, Male (All)


NW VCR, Female (All)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**NW25 Flange Accessories Available Below**
NW25 Centering Rings
NW25 Clamps, All Types
NW25 Plastic Caps

***VCR Copper Gaskets Available Below***
VCR Copper Gaskets, All Sizes
