PSG550-S LCD <br> Torr Pirani Gauge <br> (NW25 Port)

PSG550-S-LCD-9P-NW25
Measures From: 3.8x10^-5 to 760 Torr
NW25 (KF25) OD: Ø1.57"

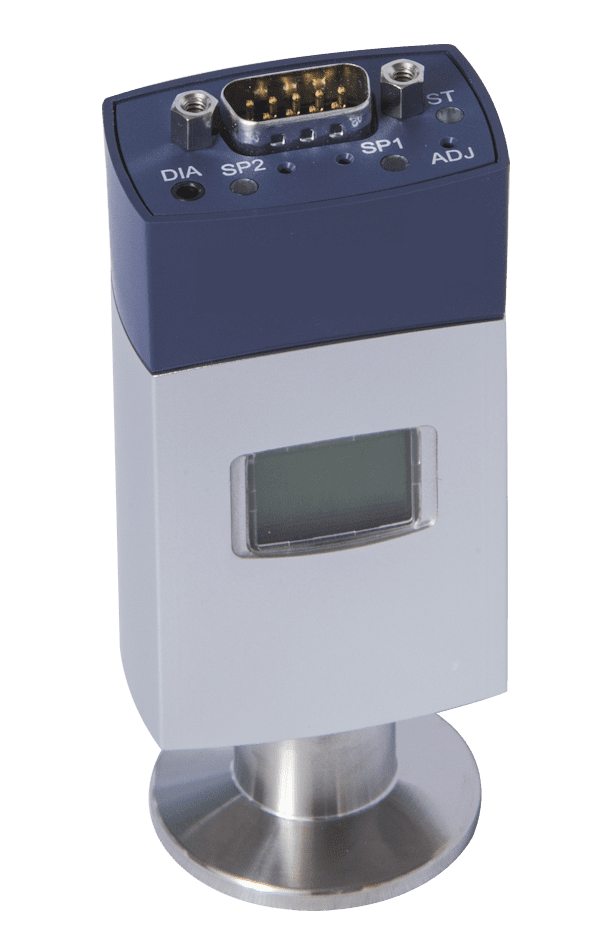

PSG550S Series Pirani Vacuum Gauge with Display
• 2 Setpoints (Solid State)
• Tungsten Filament
• 0-10 Volt Logarithmic Output
• 9-Pin D-Sub Connection
• LCD Display (Torr)

Customer will need to supply +15 to +30 VDC power
Non-Surplus, Standard Inventory
3PI1-016-4100 PSG 550-S



All NW25 Hardware		NW25 (KF25) UHV Conversion Hardware



View all PSG550-S LCD Series Gauges

NW25 Flange OD: Ø1.57"

***NW25 Flange Accessories Available Below***
NW25 Centering Rings
NW25 Clamps, All Types
NW25 Plastic Caps
