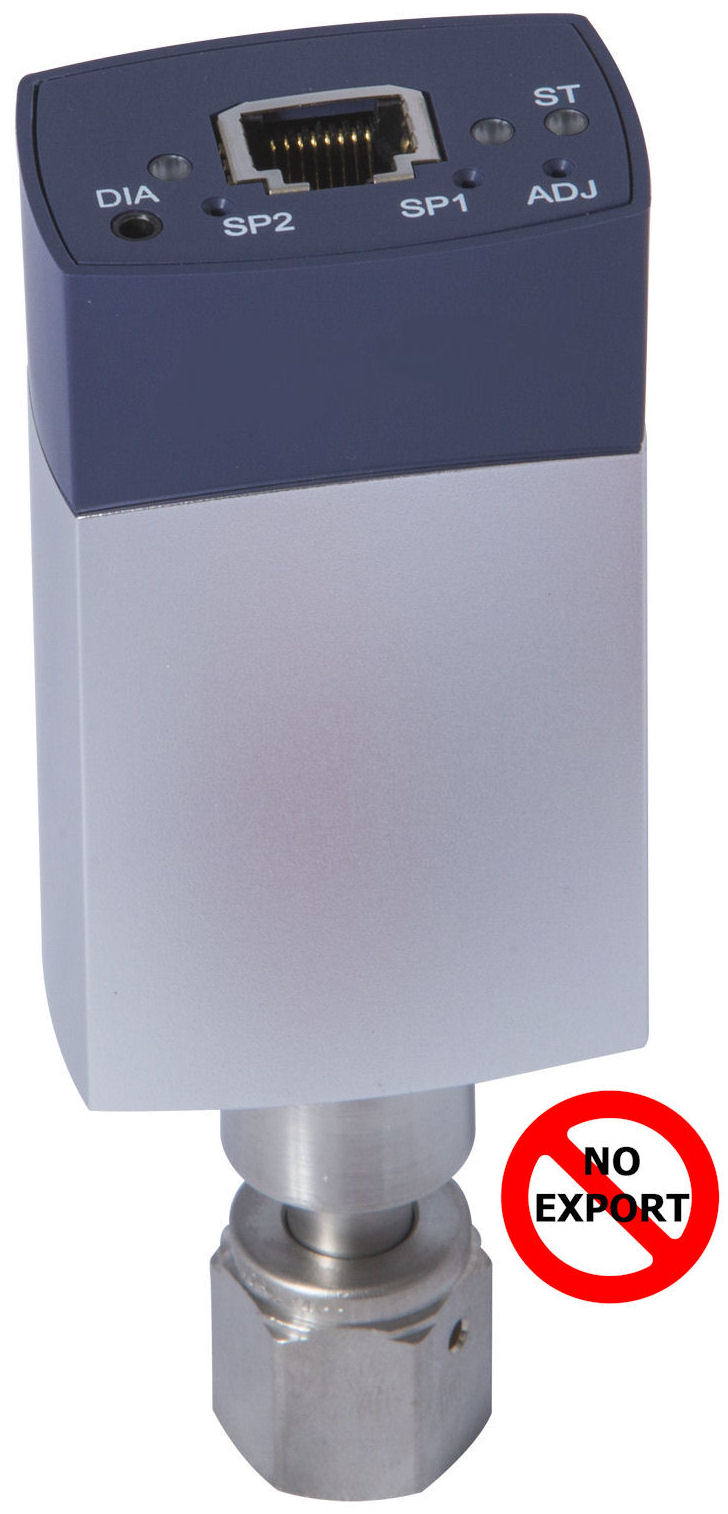

PCG550-S Combo Gauge Pirani and Capacitance <br> 1/4" Female VCR <br> (PCG550-S-25VCRF)

PCG550-S-25VCRF
Measures from: 3.8 x 10^-05 to 1125 Torr
Pirani and Capacitance Diaphragm Gauge (CDG)
1/4" Female VCR (VCR4) Port
• Inficon PCG 550-S Combination Vacuum Gauge
• Pirani & Capacitance Manometer (3PC1-00D-2000)
• Mounts in any orientation
• Selectable output signal for easy integration
• Tungsten Filament
• Cable: FCC68 Series
• 2 Integrated Setpoints

• Gas type independent above 10 mbar
(Allows safe venting with any gas mixture)

Accuracy:
±2.5% from 712 to 787 Torr
±5% between 75 and 712 Torr
±15% of reading between 7.5x10-4 and 75 Torr
Non-Surplus, Standard Inventory
EXPORT PROHIBITED



VGC501 Single Head Controller		VGC502 Dual Head Controller



VGC503 Triple Head Controller		10' Foot Cable - FCC68 Series Cable



15' Foot Cable - FCC68 Series Cable		25' Foot Cable - FCC68 Series Cable

Export of This Vacuum Technology is PROHIBITED
Reason for Control:
• Nuclear Nonproliferation (NP)
• Anti-Terrorism (AT)
Capacitance Diaphragm Gauges, Capacitance Manometers, Baratrons, Including Support Products
(CDG, Pressure Transducers)
Are EXPORT CONTROLLED & NOT available for purchase to customers outside the United States
OR to US customers where this equipment has a final destination outside the United States.
Customers not meeting this criteria must purchase directly from the manufacturer.
The International Emergency Economic Powers Act and US Export Administration Regulations
PROHIBITS The Export Of This Vacuum Technology
Capacitance Diaphragm Gauges, Capacitance Manometers, Baratrons, Including Support Products
(CDG, Pressure Transducers)
• Classification 2B230 under Export Administration Regulations (EAR).

Reason for Control:
Nuclear Nonproliferation (NP) and Anti-Terrorism (AT).
