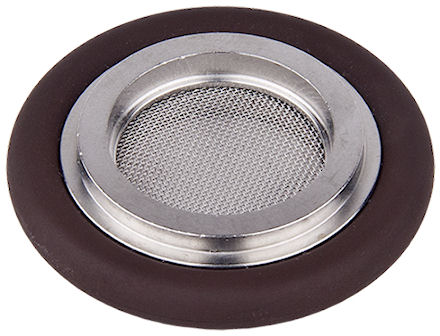

Click to enlargeMesh Screen Centering Rings

NW (KF) Mesh Screen Centering Rings
• Centering Ring Assembly with Mesh Screen
• 304 Stainless Mesh

NW (KF) High Vacuum Hardware
• Fits KF, NW, QF Series Flanges & Fittings
• Fits Kwik-Flange, Quick Flanges & Fittings

NW, KF, QF Series High Vacuum Flanges

NW10 (KF10) OD: 1.18" – Centering Ring Counter Bore: 0.48"

NW16 (KF16) OD: 1.18" – Centering Ring Counter Bore: 0.68"

NW25 (KF25) OD: 1.57" – Centering Ring Counter Bore: 1.03"

NW40 (KF40) OD: 2.18" – Centering Ring Counter Bore: 1.62"

NW50 (KF50) OD: 2.95" – Centering Ring Counter Bore: 2.06"





NW10 Mesh Screen Centering Rings
NW16 Mesh Screen Centering Rings
NW10 Mesh Screen Centering Rings

NW16 Mesh Screen Centering Rings

NW25 Mesh Screen Centering Rings
NW40 Mesh Screen Centering Rings
NW25 Mesh Screen Centering Rings

NW40 Mesh Screen Centering Rings

NW50 Mesh Screen Centering Rings
Sintered Metal Filter Centering Ring
NW50 Mesh Screen Centering Rings

Sintered Metal Filter Centering Ring

All Types, NW Series
