NW25 Manual Inline Valve
Viton® Seals

MIV-NW25-OS
NW25 (KF25) Manual Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
Overstock Price

• High Vacuum Valve
• Offset In-Line Poppet Valves
• Viton (FKM) Seals

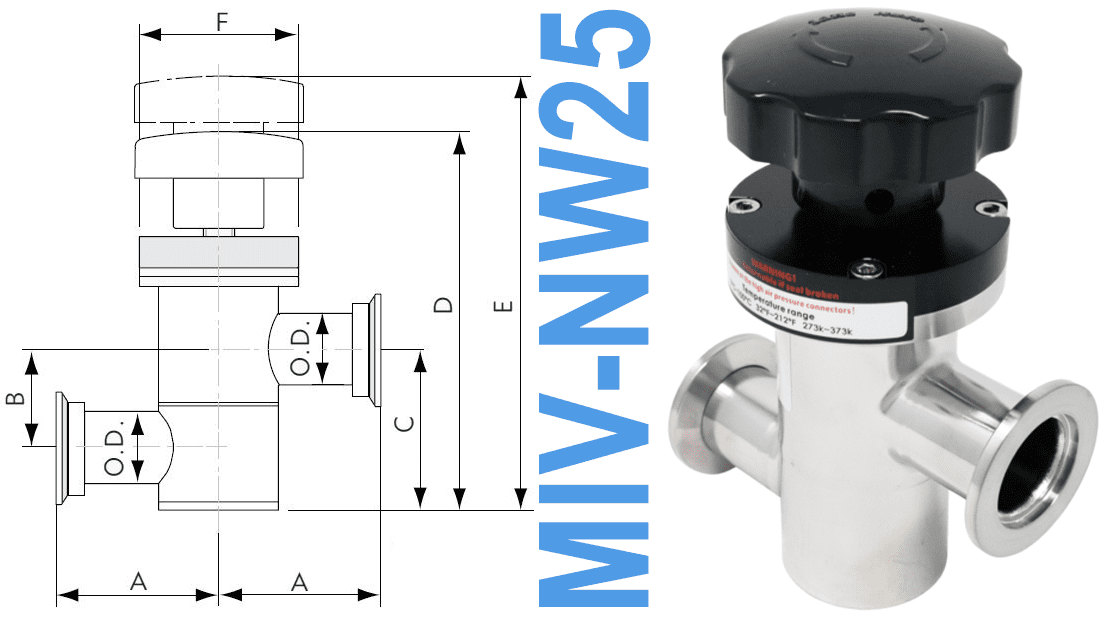

• A: 2.02"
• B: 1.38"
• C: 2.12"
• D: 5.35"
• E: 6.22"
• F: 2.39"
Former PN: MIV-1002-NWB

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Tube OD: 1"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
MIV-1002-NWB-CO ILV-1002-NWB SL0100MVQF 3106513 LPIV100-QF-E-M KIV-100 320053 MIV-NW25-OS SFLM-112-KF25 MIV-NW25 MIV-NW25-VE


NW25 Manual Inline Vacuum Valve
(MIV-NW25-OS)

MIV-NW25-OSPrice: $460.00Overstock: $288.00

Click to enlarge
Click to enlarge
All NW25 Hardware


NW Valves (ALL)



NW25 (KF25) Flange OD: Ø1.57"
• NW25 Tube OD: 1"
• NW25 Centering Ring Counter Bore: 1.03"

***NW25 Flange Accessories Available Below***
NW25 Centering Rings
NW25 Clamps, All Types
NW25 Plastic Caps
