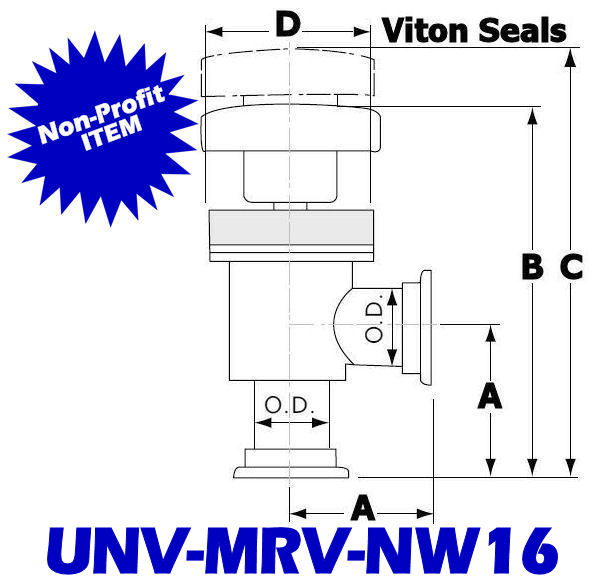

  UNV-MRV-NW16 Manual Right Angle Vacuum Valve NW16 (KF16) Flange OD: 1.18" Non-Profit Exclusive Pricing Brand New, Standard LDS Stock Valves • High Vacuum Valve • HV Elastomer Sealed Poppet Valve • Viton Seals (Fluorocarbon, FKM) Seals • A: 2.15" • B: 5.47" • C: 6.34" • D: 2.38" NW16 Flange OD: Ø1.18" • NW16 Tube OD: 0.75" • NW16 Centering Ring Counter Bore: 0.68"
NW16 High Vacuum Flange Equivalents |
|
 All NW16 Hardware |
|
| NON-PROFIT ITEMS LISTED ON THIS PAGE Shipment must be made to a qualifying address for: • Colleges, Universities or High Schools • US Government Laboratories • Non-Profit Agencies
