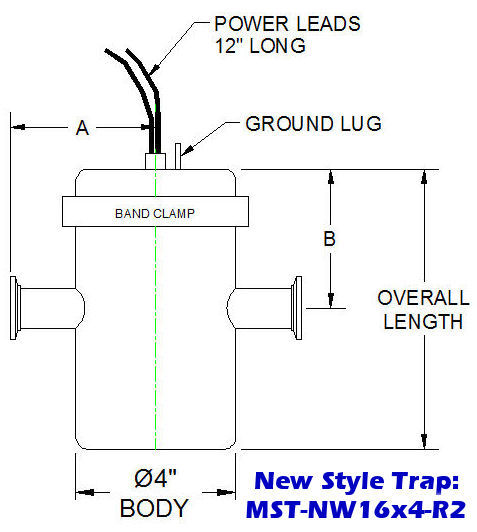

NW16 Molecular Sieve Trap
Overall Height: 7.00"
A: 3.63"
B: 3.50"
Vacuum Essential

NW16 Molecular Sieve Trap
Vacuum Essential

• NW16 (KF16) Vacuum Flange OD: Ø1.18"
• 4" diameter trap heater rates at 120V, 125W
• Integral 115VAC regeneration heater
• Tumble Finish

Vacuum Essential, Includes:
• NW16 Trap, MST-NW16x4-R2
• (2) NW16 Stainless/Viton Centering Rings
• (2) NW16 Aluminum Wing Clamps
• 1 lb. can of sieve material (1/8" zeolite pellets)

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

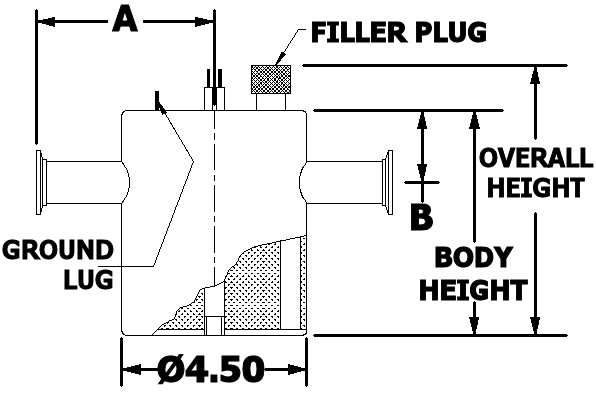

Molecular Sieve Trap NW16


NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

***This Vacuum Essential Includes***
• NW16 Molecular Sieve Trap
2-Aluminum Wing Clamps (NW16-075-CW)
2-Stainless/Viton Centering Rings (NW16-075-SR-V)
