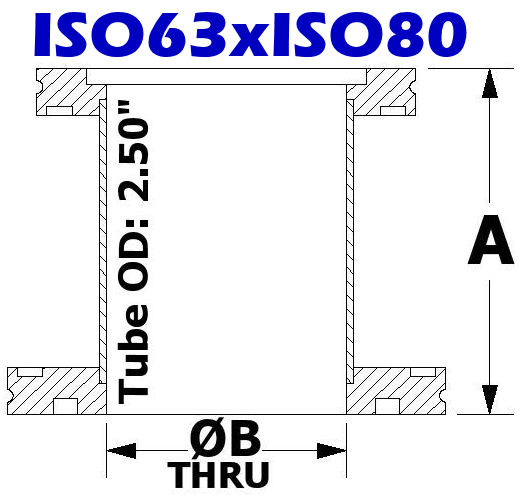

Straight Reducing Nipple <br> (ISO63xISO80)

ISO63xISO80
ISO63 to ISO80 Reducing Nipple
OD Polish
• Tube OD: 2.50"
• A: 2.95"
• B: 2.37"
• ISO-K Claw Clamp Series
• ISO80xISO63 Straight Reducer
• 304 Stainless

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"

ISO63 High Vacuum Flange Equivalents:
ISO-63, LF63, NW63, NW-63, Large Flange,
ISO-LF, ISO-K, ISO-MF

ISO80 (ISO-K) Series
• High Vacuum Flange OD: Ø4.33"

ISO80 High Vacuum Flange Equivalents:
ISO-80, LF80, NW80, NW-80, Large Flange,
ISO-LF, ISO-K, ISO-MF

Flange to Flange High Vacuum Reducing Adapter
ISO63xISO80 Compare to: QF80XQF63 2NR-ISO-80-63-OF 100762506 832005 L300XL250 4500237 LF63XLF80 P101730 LF80XLF63-250-N-2.95 ISO63xISO80-VE ISO80xISO63-VE
