Click to enlargeISO100 Series O-Rings

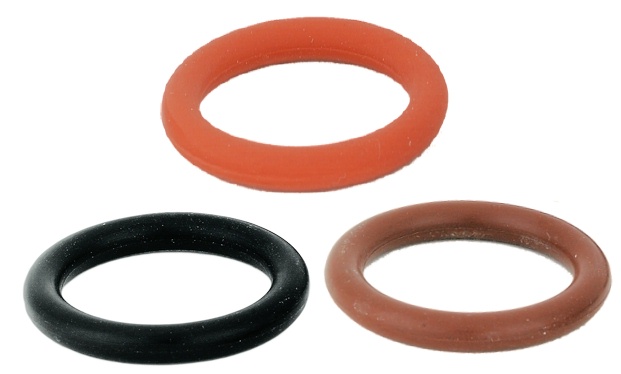

ISO100 Replacement O-Rings
Fits ISO100 (LF100) Centering Ring
• Replacement Elastomer O-Rings

Available O'Rings (Gaskets)
• Buna-N (Nitrile, NBR):
100°C Max
• Viton (Fluorocarbon, FKM): 200°C Max
• Silicone (Chemical Series): 200°C Max



ISO100 Buna O-Ring <br> (ISO100-400-OB)
ISO100 Silicone O-Ring <br> (ISO100-400-OS)
ISO100 Buna O-Ring
(ISO100-400-OB)


Price: $13.40
Sale: $1.00
ISO100 Silicone O-Ring
(ISO100-400-OS)


Price: $17.85
Sale: $5.00
ISO100 Viton O-Ring <br> (ISO100-400-OV)
Click to enlarge
ISO100 Viton O-Ring
(ISO100-400-OV)


Price: $28.69
Sale: $7.00
Centering Ring Assemblies

ISO100, All Types

Click to enlarge
Click to enlarge
ISO100 Series Hardware

ISO Center Only Rings


Viton® (Fluorocarbon, FKM) O-Rings:
200°C Maximum
• Viton® (Fluorocarbon, FKM)
is normally used in vacuum service. Viton® has a low porosity to most gases and withstands high temperatures up to 200°C for short periods.

Silicone O-Rings:
200°C Maximum, Chemical Applications
• Silicone
is used in chemical applications and can withstand temperatures of 200°C for short periods, but silicone tends to harden to prolonged high temperature service, sticking to the metal surfaces and making the o-ring difficult to be replaced. Silicone is also very porous to helium.

Buna-N O-Rings:
100°C Maximum
• Buna-N
is low cost, but their maximum operating temperature of 100°C makes them unacceptable for many high temperature vacuum applications.
