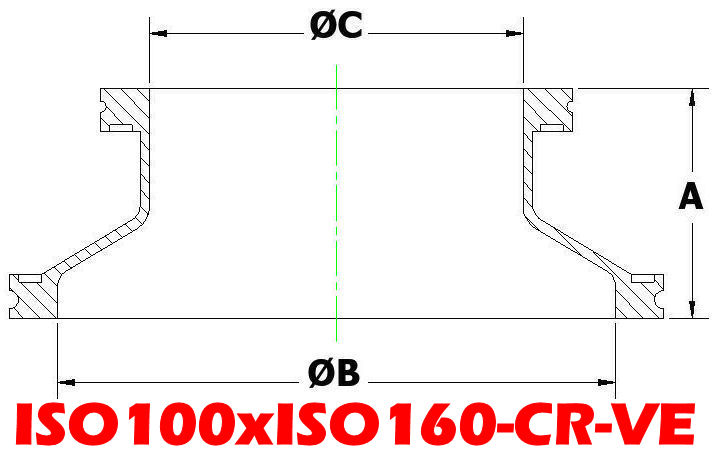

Click to enlargeISO100 to ISO160
Conical Reducer

ISO100xISO160-CR-VE
• A: 2.48" OAL

• B: 6.02"
• C: 4.02"
Vacuum Essential

ISO100 to ISO160 Reducer Adapter
• Flange to Flange Adaptor
• ISO (ISO-K, LF) Flange Series
• Conical Reducer

• Conical Reducing Nipple
• ISO-MF to ISO-MF Conical Adapter
• ISO (ISO-K) Claw Clamp Series
• 304 Stainless
• OD Polish
One Piece Machined
Small Spaces Conical Reducer

ISO160xISO100-CR ISO100xISO160-CR-S


ISO100 to ISO160
Conical Reducer
ISO100xISO160-CR-VE

ISO100xISO160-CR-VE$332.00

Click to enlarge
Click to enlarge
ISO100 Series Hardware


ISO160 Series Hardware


Click to enlarge
Click to enlarge
ISO Conical Reducers


ISO Straight Reducers


Click to enlarge
Click to enlarge
ISO Series Nipples (ALL)


Custom Adapters and Nipples



ISO100 High Vacuum Flange OD: Ø5.12"
ISO160 High Vacuum Flange OD: Ø7.09"

This Vacuum Essential Includes
ISO100 to ISO160 Conical Reducer

Aluminum Double Claw Clamps:
4 each (ISO63-100-DC)
4 each (ISO160-250-DC)

Stainless Centering Rings With Viton O-Ring:
1 each (ISO100-400-SR-V)
1 each (ISO160-600-SR-V)
