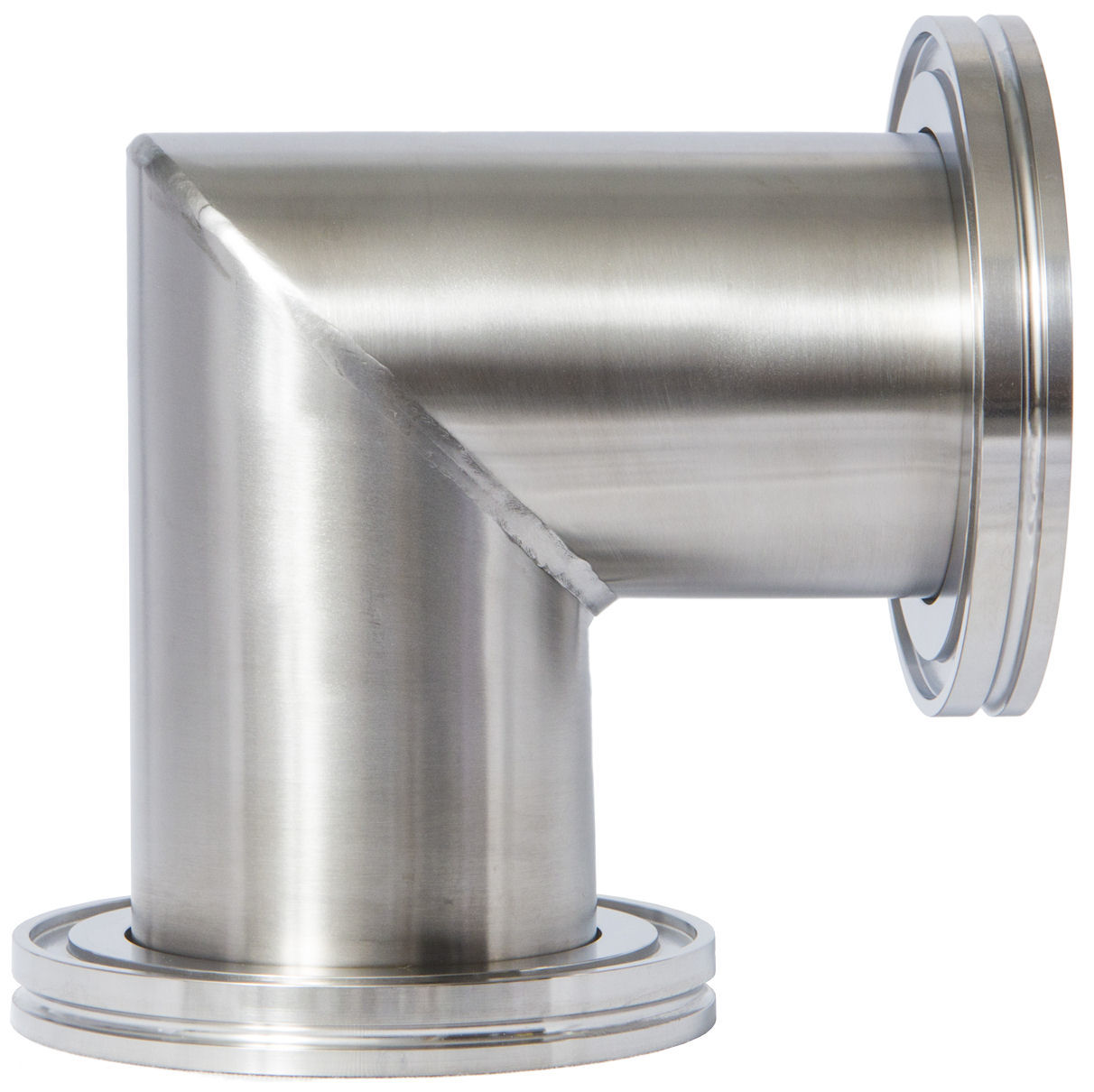

Click to enlarge90° Mitred Elbow

90 Degree Miter Elbow
• ISO (LF) Flange
• 304 Stainless Steel
• Large Flange
• Claw Clamp Style (ISO-K)
High Vacuum Mitered Elbow

ISO, ISO-K, LF Series - High Vacuum Flanges

ISO63 (LF63) Flange OD: 3.74"

Tube OD 2.50"

ISO80 (LF80) Flange OD: 4.33"

Tube OD 3.00"

ISO100 (LF100) Flange OD: 5.12"

Tube OD 4.00"

ISO160 (LF160) Flange OD: 7.09"

Tube OD 6.00"

ISO200 (LF200) Flange OD: 9.45"

Tube OD 8.00"

ISO250 (LF250) Flange OD: 11.42"

Tube OD 10"





ISO63 Mitered Elbow
(ISO63-250-E90M)

Price: $327.15
Sale: $143.00
ISO63 Mitered Elbow
(ISO63-E90M-VE)

Vacuum Essential
$205.00
ISO80 Mitered Elbow
(ISO80-300-E90M)

Price: $426.00
Sale: $196.00
ISO80 Mitered Elbow
(ISO80-E90M-VE)

Vacuum Essential
$260.00
ISO100 Mitered Elbow
(ISO100-400-E90M)

Price: $449.45
Sale: $227.00
ISO100 Mitered Elbow
(ISO100-E90M-VE)

Vacuum Essential
$293.00
ISO160 Mitered Elbow
(ISO160-600-E90M)

Price: $842.38
Sale: $491.00
ISO160 Mitered Elbow
(ISO160-E90M-VE)

Vacuum Essential
$611.00
ISO200 Mitered Elbow
(ISO200-800-E90M)

Price: $1,038.45
Sale: $989.00
ISO200 Mitered Elbow
(ISO200-E90M-VE)

Vacuum Essential
$1,167.00
ISO250 Mitered Elbow
(ISO250-1000-E90M)

Price: $2,225.00
Sale: $1,861.00
ISO250 Mitered Elbow
(ISO250-E90M-VE)

Vacuum Essential
$2,089.00

***Vacuum Essentials Include***
• ISO Mitered Elbow
ISO Aluminum Double Claw Clamps
ISO Series Centering Ring
