Click to enlarge90° Mitred Elbow
ISO200 Flanges
*UNPOLISHED Finish*

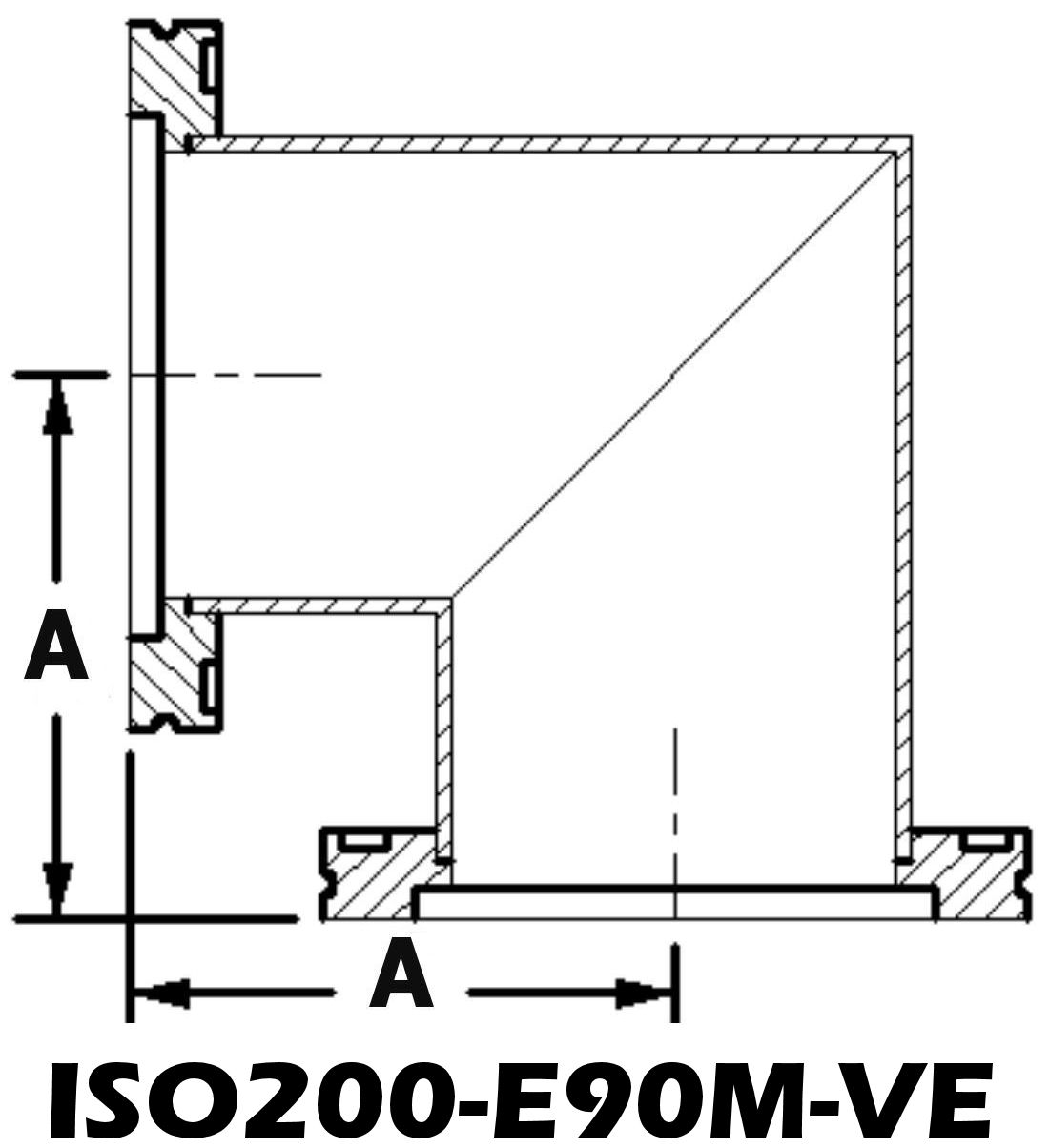

ISO200-E90M-VE
ISO200 High Vacuum Miter Elbow
90 Degree Mitered Elbow
Vacuum Essential

• 304 Stainless
• A: 6.61"
• 24 lbs.

ISO200 (ISO-K) Series
• High Vacuum Flange OD: Ø9.45"
• Tube OD: 8.00"
• ISO-K Claw Clamp Style

ISO200 High Vacuum Flange Equivalents:
ISO-200, LF200, NW200, NW-200, Large Flange,
ISO-LF, ISO-K, ISO-MF


UNPOLISHED, No Cancel/Return Item
Tolerance for this Large Fitting is ±0.063"

ISO200-800-E90M-VE


ISO200 Mitered Elbow
(ISO200-E90M-VE)

ISO200-E90M-VE$1,167.00

Click to enlarge
Click to enlarge
ISO200 Series Hardware


ISO (ISO-K) Series Elbows



***This Vacuum Essential Includes***
90 Degree Radius Elbow, ISO200
12 AL Double Claw Clamps ISO160-250-DC
2 SS/Viton Centering Rings ISO200-800-SR-V
