NW25-100-E90-LR <br> Long Radius Elbow (NW25 Series)

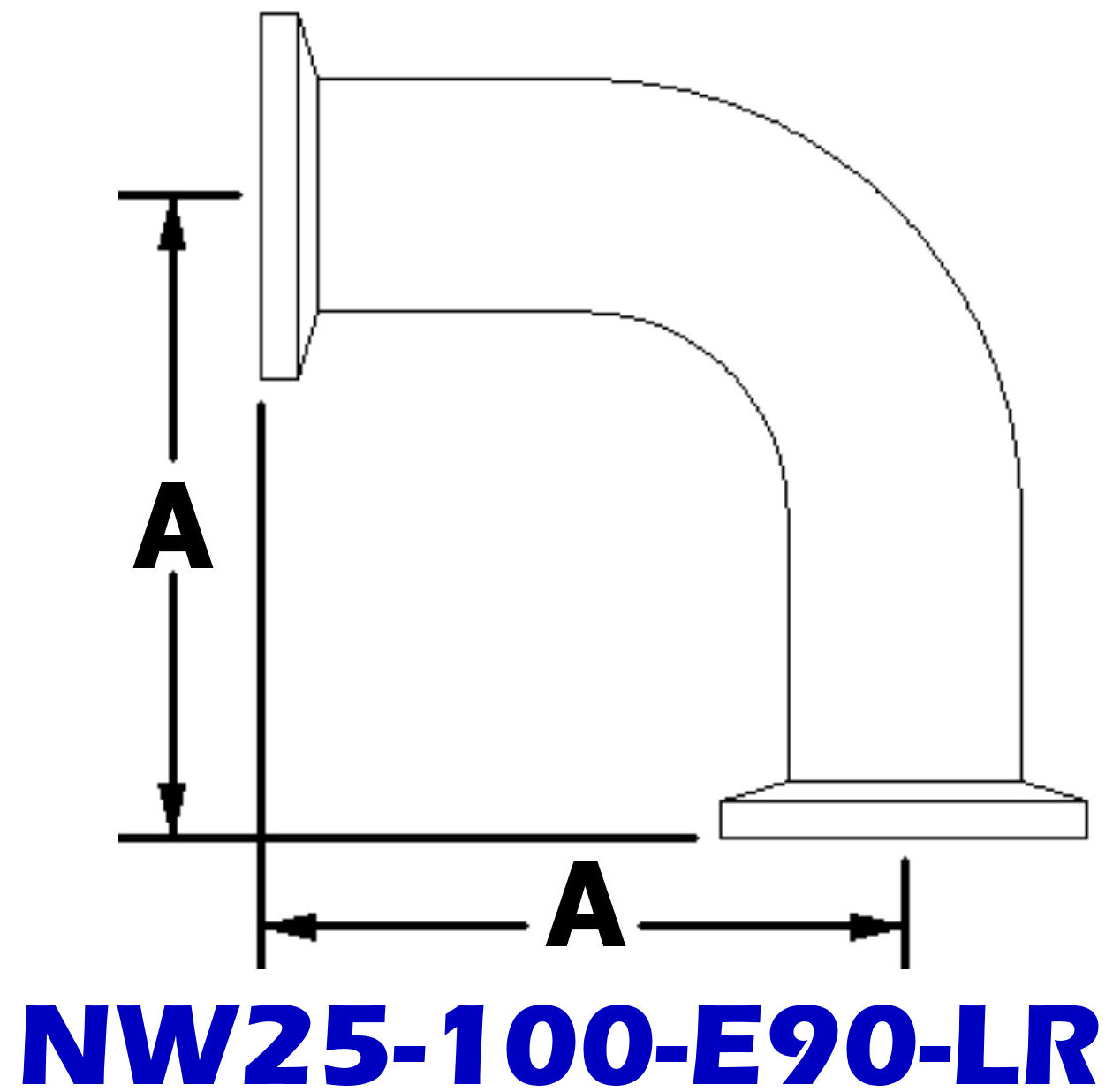

90° Elbow - NW25
Long Radius
A: 3.64"
304 SS

NW25-100-E90-LR
90 Degree Long Radius Elbow, NW25
• 304 Stainless
• OD Polish

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Tube OD: 1.00"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
Compare to P103440 QF25-E90-LR QF25-100-E90-LR 4000463 K100-2LL 723019 NW25-100-E90-LR-VE QF25-100-E90LR-3.64 NW25-100-E90LR-VE NW25-E90-LR-VE NW25-E90LR-VE



All NW25 Hardware		90° Long Radius Elbows, NW Series



NW Elbows (All)

NW25 Flange OD: 1.57"
NW25 Tube OD: 1.00"

***NW25 Flange Accessories Available Below***
NW25 Centering Rings
NW25 Clamps, All Types
NW25 Plastic Caps
