8.00" OD CF to 1.33" OD CF <br> Zero Length Reducer <br> (800x133-075-0-T1)

800x133-075-0-T1
8.00" OD Conflat to 1.33" OD Conflat
133x800 UHV Flange To Flange Adapter
Zero Length Reducer
DN160CF to DN16CF Double Sided Flange
• Smaller Flange Has Tapped Holes
• Special Purpose Flange
• Different Size Conflat On Each Side
• Double-Sided Conflat Flange (CF)
• Double Faced CF Flange

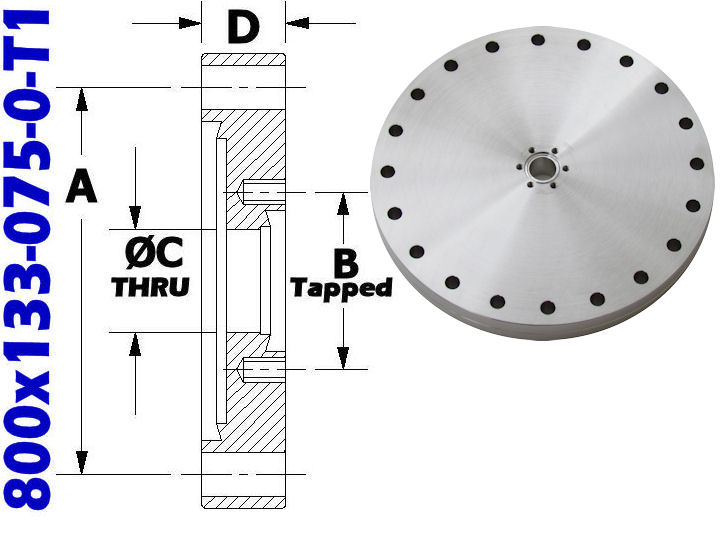

• A: 8.00" OD Conflat
• B: 1.33" OD Tapped Conflat
• C: 0.62"
• D: 0.88"
• 304 Stainless
• Weight: 13 lbs.

DN160CFxDN16CF (DN16CFxDN160CF)

1.33" OD CF Conflat Flange
• 6 Tapped Holes
• 8-32 Thread
• Uses 133-BT Tapped Bolt Kit

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del Seal

8.00" OD Conflat Flange (CF):
• 20-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

8" OD CFF Conflat Flange (CF800) Equivalents:
DN160CF, DN150CF, NW150CF, CF150, CF160, 800CF
800x133-075-0-T1 Compare to: RF800X133 P104818 800-133-075Z 5000313 150027 FR080001334



1.33" OD Conflat Series Hardware		8.00" OD Conflat Series Hardware

1.33" OD Conflat:
• 6-TAPPED Holes

8.00" OD Conflat:
• 20-Clearance Holes

***1.33" OD Conflat Flange Accessories Below***
1.33" OD Conflat - TAPPED Bolt Kit
1.33" OD Conflat - Copper Gaskets
1.33" OD Conflat - Viton Gaskets
1.33" OD Conflat - Plastic Caps

***8.00" OD Conflat Flange Accessories Below***
8.00" OD Conflat Flange - Bolt Kits
8.00" OD Conflat Flange - Copper Gaskets
8.00" OD -Conflat Flange Viton Gaskets
8.00" OD Conflat Flange – Plastic Caps
