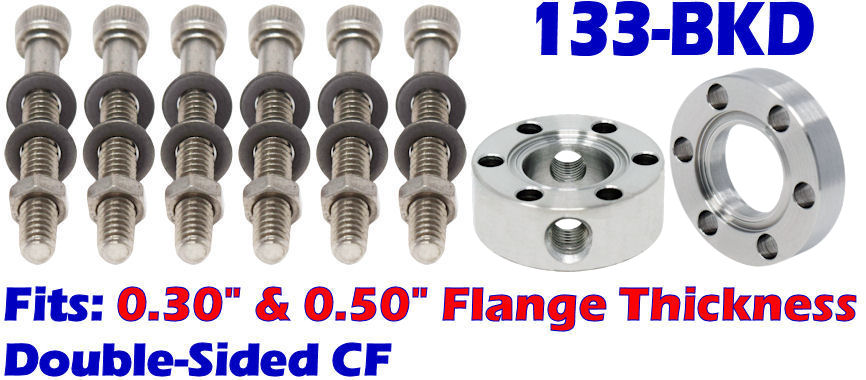

6-Bolts, Nut & Washer Kit
Fits:
1.33" OD DOUBLE-SIDED (DS) Conflat Flanges

133-BKD
Fits: 0.30" and 0.50" Thick 1.33" Double Sided CF Conflat Flanges (Mini Conflat Flange)
6 Socket Head Cap Screws, Washers & Nuts

• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless Bolts
• DN16CF (1-1/3") Double Faced Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

133-BKD Series Bolt Kit Fits:
1.33" OD Double Sided CF, Standard Thickness
1.33" OD Double Sided CF, 0.50" Thickness
Double Sided CF to Female NPT

Maximum Torque for Vacuum Tight Seals

1.33" OD

5 ft/lbs.

Over-torqueing can result in broken bolts




Bolt, Nut & Washer Kit
Fits: 1.33" OD Conflat
Double Sided Flange
(133-BKD)

133-BKD$6.00

Click to enlarge
Click to enlarge
1.33" OD Conflat
Double Sided Flanges



Double Sided Conflat to Female NPT


Click to enlarge
Click to enlarge
1.33" OD Conflat Series Hardware


1.33" OD Conflat Flange UHV Viewport

Original Series


*1.33" OD Double Sided CF Accessories Below*
Copper Gaskets - 1.33" OD Conflat
Viton Gaskets - 1.33" OD Conflat

1.33" OD Double Sided Conflat Flanges (Standard)
1.33" OD Double Sided Conflat Flanges (NPT Series)
