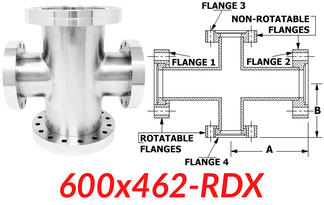

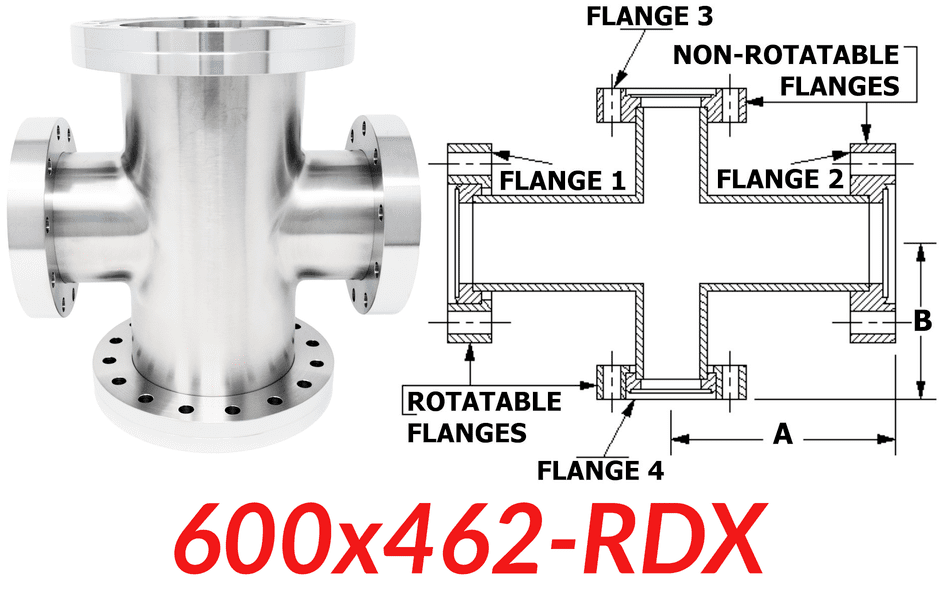

Reducing Cross
6.00" OD Conflat to 4.62" OD Conflat
A: 4.32"
B: 4.13"

Conflat Flange 4-Way Reducer Cross
6" OD Conflat to 4.62" OD Conflat

• DN75CF to DN100CF UHV Adapter
• 304 Stainless
• OD Polish
• 14 lbs.

4-5/8" OD Conflat Flange (CF):
• 3.00" Tube OD
• 10-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF

6.00" OD Conflat Flange (CF):
• 4.00" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF

CF Conflat to CF Conflat Flange
4 Way Adaptive Cross

600x462-RDX Compare to: 4CR-400-300 C-0600-462 5000544 P104798 400-4-300 405048

6.00" OD CF to 4.62" OD Conflat Reducing Cross

600x462-RDXPrice: $828.00Price Drop: $542.00

Click to enlarge
Click to enlarge
4.62" OD Conflat Series Hardware

6.00" OD Conflat Series Hardware

Click to enlarge
Click to enlarge
CF Reducing Crosses

All Conflat Crosses
