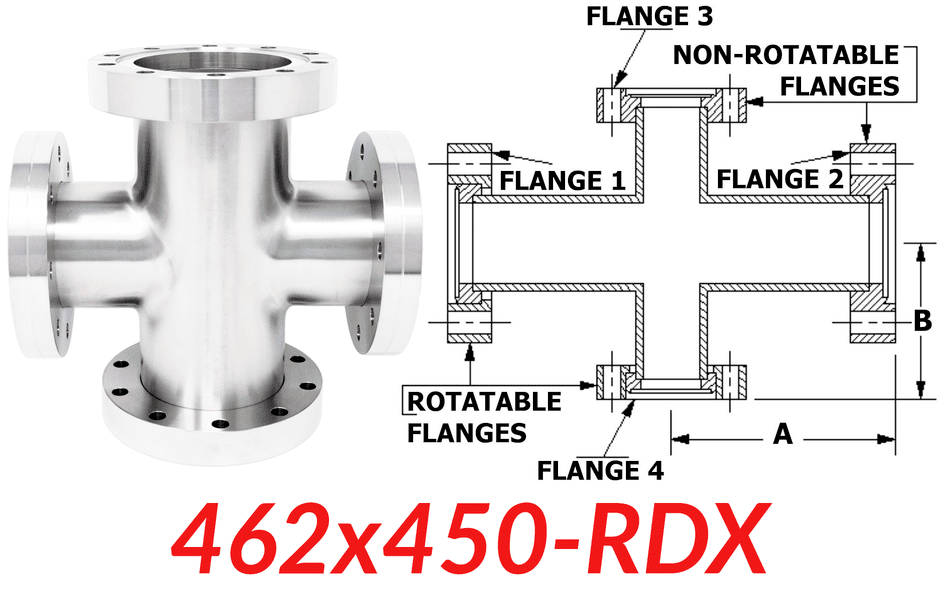

Reducing Cross
4.62" OD Conflat to 4.50" OD Conflat
A: 3.63"
B: 3.63"

462x450-RDX
Conflat Flange 4-Way Reducer Cross
4.62" OD Conflat to 4.50" OD Conflat

• DN63CF to DN75CF UHV Adapter
• 304 Stainless
• OD Polish

4-1/2" OD Conflat Flange (CF):
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450



4-5/8" OD Conflat Flange (CF):
• 3.00" Tube OD
• 10-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF

CF Conflat to CF Conflat Flange
4 Way Adaptive Cross

462x450-RDX Compare to: 4CR-300-250 C-0462-450 5000540 P104797 300-4-250 405045 450x462-X 450x462-RDX 462x450-X


4.62" OD CF to 4.50" OD Conflat
Reducing Cross
462x450-RDX

462x450-RDXPrice: $1,062.50Sale: $561.00

Click to enlarge
Click to enlarge
4.50" OD Conflat Series Hardware


4.62" OD Conflat Series Hardware


Click to enlarge
Click to enlarge
CF Reducing Crosses


All Conflat Crosses
