![Click to enlarge](https://s.turbifycdn.com/aah/vacuumshopper/3-38-od-thru-hole-conflat-12pt-bolt-plate-nut-kit-23.gif)

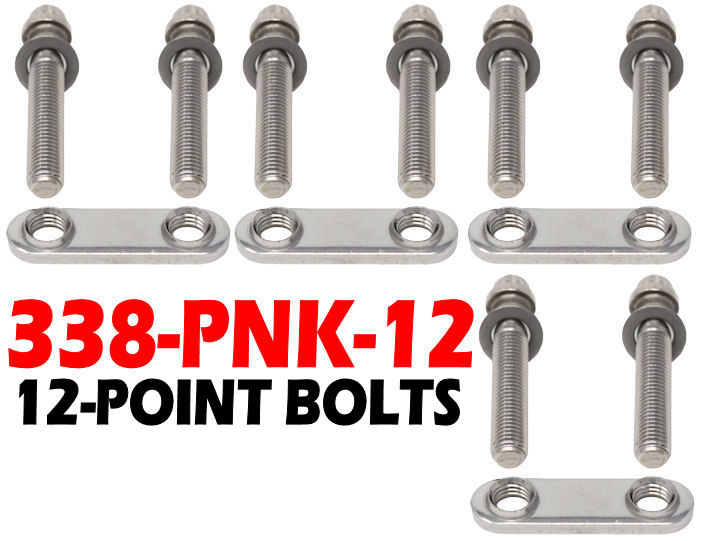

![3.38" OD Conflat Flange
(8) 12 Point Bolts, (4) Plate Nuts & Washer Kit](https://s.turbifycdn.com/aah/vacuumshopper/12-point-bolt-kit-plate-nuts-washers-fits-3-38-od-conflat-clearance-thru-hole-338-pnk-12-22.gif)
338-PNK-12
Fits: 3-3/8" OD CF Conflat Flanges With Thru Hole
4 Plate-Nuts, 8 Bolts & Washers Kit
• 12-PT Bolt, Washer and Plate Nut Kit
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless 12 Point Bolts
• DN50CF (3.38") Clearance Hole Bolt Kit
• Ultra-High Vacuum (UHV) Hardware
338-PNK12 Series Bolt Kit Fits:
3.375" OD Non-Rotatable Thru Hole CF Flanges
3.375" OD Rotatable Thru Hole CF Flanges Also Fits All CF Elbows, Tees and Crosses
Plate Nuts allow two adjacent bolts to be coupled to a single nut piece. A must for areas where accessibility is limited and reduced access does not allow enough clearance for tools.
Maximum Torque for Vacuum Tight Seals
|
3.38"
-16.50" OD
|
26
ft/lbs.
|
Over-torqueing can result in broken bolts |
|
