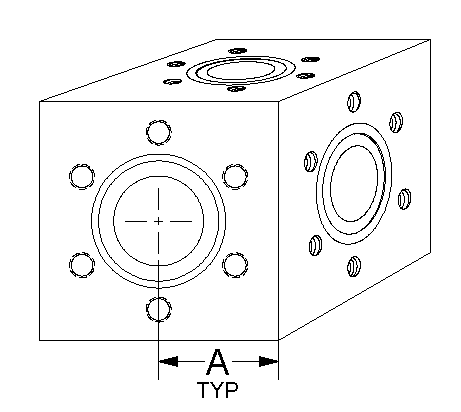

3.38" Conflat Flanges
6-Way Cube
A: 1.68"

338-CUBE
6 WAY CONFLAT UHV CUBE
3-3/8" OD CF Conflat Flange Series

• 8 Tapped Holes
• Hole Thread: 5/16-24
• A: 1.68"
• Porting is 2"
• 304 Stainless
Former PN: 338-CU

6-Way Cube for Ultra High Vacuum
UHV Applications

3.38" OD Conflat Flange (CF) Equivalent Names:
• 338CF, NW50CF, CF338, DN50CF, 3-3/8" CFF



3.38" Conflat Cube
338-CUBE

Click to enlarge
Click to enlarge
3.38" OD Conflat Series Hardware


6-WAY CROSS



**3.38" OD Conflat Flange Accessories Below**
3.38" OD Conflat Flange TAPPED Bolt Kits
3.38" OD Conflat Flange - Copper Gaskets
3.38" OD Conflat Flange - Viton Gaskets
3.38" OD Conflat Flange Plastic Caps
