Click to enlarge

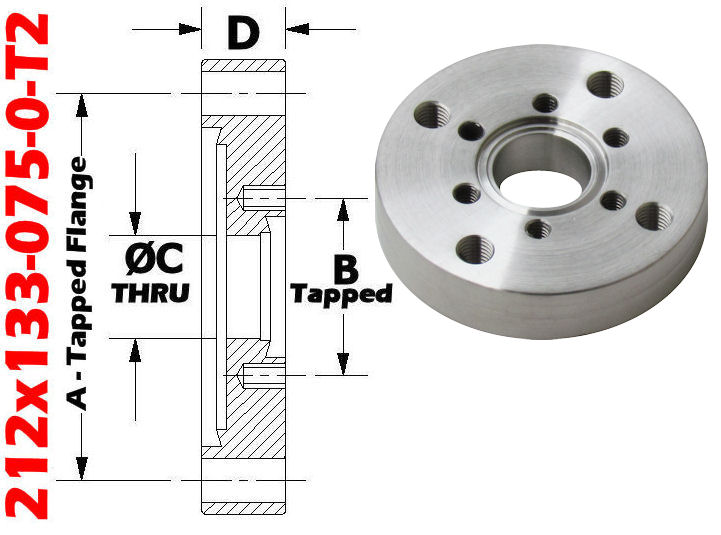

2.12" OD Conflat to 1.33" OD Conflat
Zero Length Reducer

2.12" OD Conflat to 1.33" OD Conflat (Tapped)
212x133 Flange To Flange UHV Adapter
Zero Length Reducer

DN25CF to DN16CF Double Sided Flange
• A: 2.12" OD Tapped Conflat
• B: 1.33" OD Tapped Conflat
• C: 0.62" (Thru)
• D: 0.47"
• DN25CF x DN16CF ( DN25CFxDN16CF)

1.33" OD CF Conflat Flange
• 6 Tapped Holes
• 8-32 Thread
Uses 133-BT Tapped Bolt Kit

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del Seal

2.12" OD Conflat Flange (DN25CF):
• 4 Tapped Holes
• 1/4-28 Thread

2.125" OD Conflat Flange (CFF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF
212x133-075-0-T2 Compare to: 5000286 CF212TXCF133BT-075-ZLR-0.470 212-133-075Z 150000 RF212X133T P104805

2.12" OD CF to 1.33" OD CF
Zero Length Reducer

212x133-075-0-T2Price: $262.51Price Drop: $63.00

Click to enlarge
Click to enlarge
1.33" OD Conflat Series Hardware

2.12" OD Conflat Series Hardware

Click to enlarge
CF to CF Zero Length Reducers

1.33" OD Conflat:
• 6-TAPPED Holes

2.12" OD Conflat:
• 8-Tapped Holes

**1.33" OD Conflat Flange Accessories Below**
1.33" OD Conflat - Copper Gaskets
1.33" OD Conflat - Viton Gaskets
1.33" OD Conflat - Tapped Bolt Kits

**2.12" OD Conflat Flange Accessories Below**
2.12" OD Conflat - Copper Gaskets
2.12" OD Conflat - Viton Gaskets
2.12" OD Conflat - Tapped Bolt Kits
