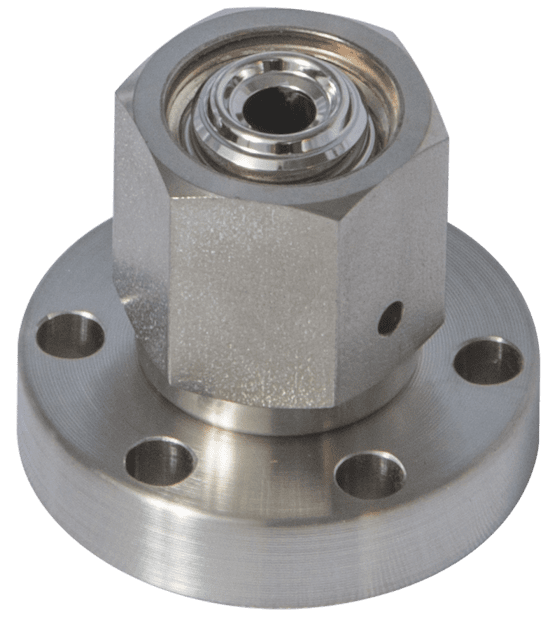

Click to enlarge1.33" OD Conflat To 3/8" Female, VCR

133x38VCR
1.33" OD Conflat to 0.38" VCR Female Adapter
1.33" CF to Female 6 VCR (VCR6)
• Non-Rotatable
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del Seal

High and Ultra High Vacuum (UHV) Fitting
Image Shown for Reference Only
Compare to: F0133X6FVCR AVF0375133 VCR6 133-3/8-FVCR 5000634 133xVCR38 133x38-VCR 133x38VCR-VE


1.33" OD Conflat Flange to 3/8" VCR Female
(133x38VCR)
133x38VCRPrice: $127.00Sale: $88.00

Click to enlarge
Click to enlarge
1.33" OD Conflat Series Hardware


VCR Copper Gaskets (All)


Click to enlarge
Click to enlarge
Conflat to Male VCR Adapters (ALL)


Conflat to Female VCR Adapters (ALL)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**1.33" OD Conflat Flange Accessories Below**
1.33" OD Conflat - Bolt Kits
1.33" OD Conflat - Copper Gaskets
1.33" OD Conflat - Viton Gaskets
1.33" OD Conflat - Plastic Caps

***VCR Copper Gaskets Available Below***
VCR Copper Gaskets, All Sizes
