13.25" OD Conflat BLANK <br> (1325-000-T)

13.25" OD Conflat BLANK
Non-Rotatable
Tapped Holes
304L Stainless

1325-000-T

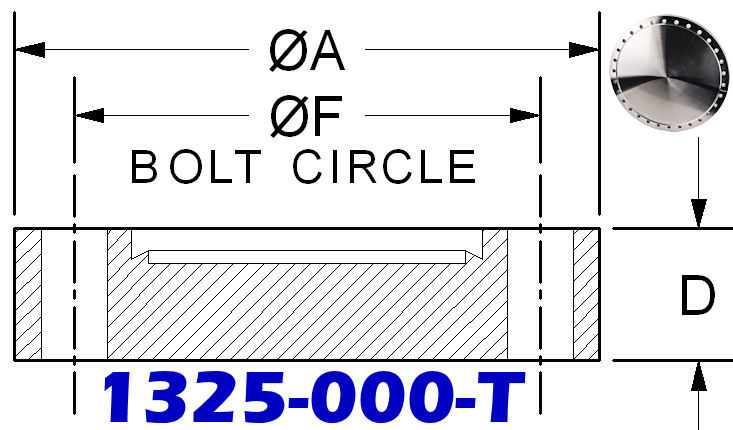

13.25" OD Conflat Flange
CF BLANK (Tapped Holes)
• A - 13.25"
• D - 1.12"
• F - 12.06"
• 43 lbs.

13.25" OD Conflat Flange (CF 1325)
• Non-Rotatable
• 30 Tapped Holes (3/8-24 Thread)
• 304 Stainless

13-1/4" OD Conflat Equivalent Names:
• CF1325, DN275, DN275CF, NW275CF, 1325CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
13.25" OD (DN275CF) Non-Rotatable Tapped CF Flanges
1325-000-T Compare to: F1325X000NT 5000175 CF1325T-000 1325-000NT F1325000T 130034



13.25" OD Conflat - Rotatable Series		Shop all 13.25" OD Conflat Hardware

**13.25" OD Conflat Flange Accessories Below**
13.25" OD Copper Gaskets
13.25" OD Conflat Flange Viton Gaskets
13.25" OD Conflat – TAPPED Flange Bolt Kit
