Click to enlargeNW50 to NW16 Flexible Metal Hose
10" Overall Length
Hose ID: 0.75"
Vacuum Essential

NW50x16-MH10-VE
NW50 to NW16 Reducing Flexible Metal Hose; 10" OAL
Vacuum Essential

• Nominal Hose ID: 3/4"
• Flange to Flange Bellows Adapter
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• Flexible Reducer Coupling (Nipple)
• Thin Wall: 0.006"

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF


NW50 (KF50):
• Flange OD: Ø2.95"

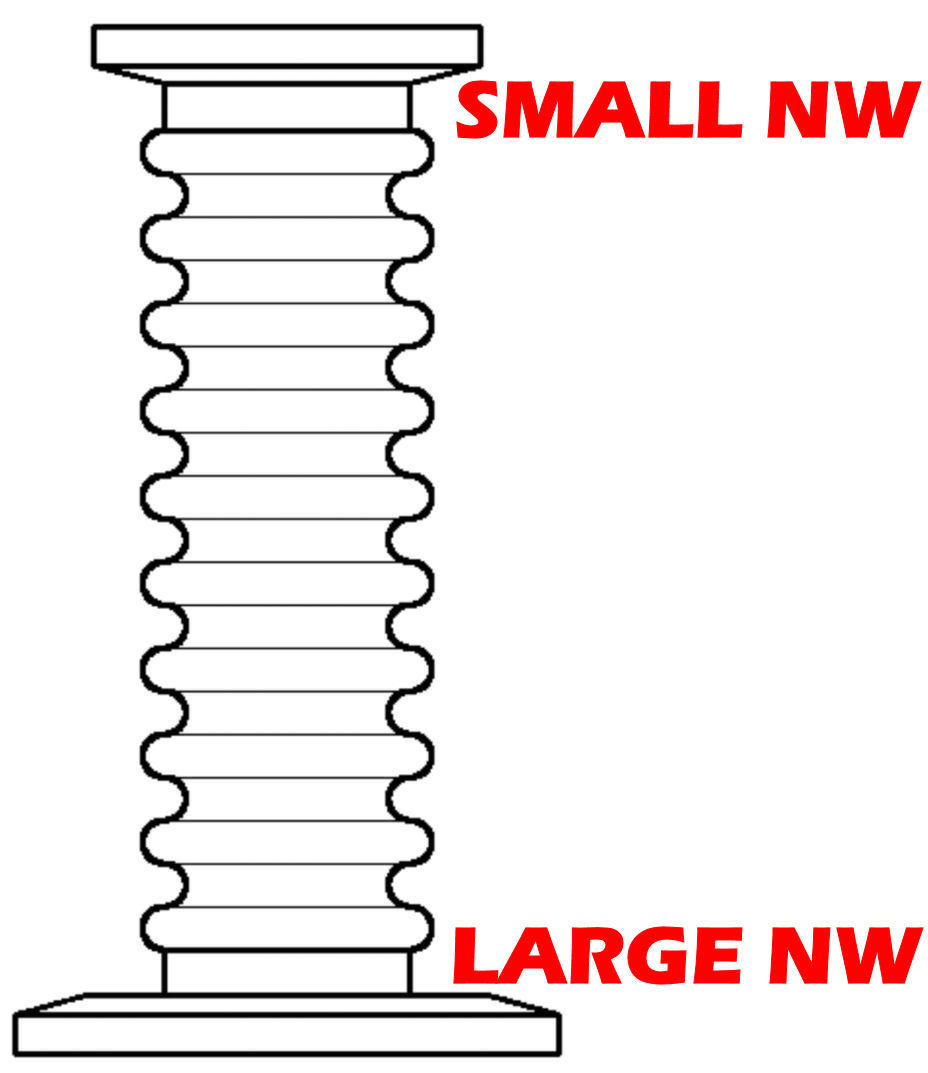

Image Shown For Reference Only
NW50xNW16-MH10-VE NW16x50-MH10-VE NW16xNW50-MH10-VE KF50xKF16 KF16xKF50


10" Reducing Flex Hose
NW50 & NW16 Flanges
(NW50x16-MH10-VE)

NW50x16-MH10-VE$192.00

Click to enlarge
Click to enlarge
All NW16 Hardware


All NW50 Hardware


Click to enlarge
Reducing Flex Hose



**This Vacuum Essential Includes**
NW50x16-MH10

Aluminum Wing Clamps, 1 Each
(NW16-075-CW)
(NW50-200-CW)

Stainless/Viton Centering Rings, 1 Each
(NW16-075-SR-V)
(NW50-200-SR-V)
