13.25" OD Conflat Flange <br> 10.75" OD Tube <br> (1325-1075-T)

13.25" OD Conflat Flange
Non-Rotatable
30-Tapped Holes, 3/8-24 Thread
10.75" OD Tube
304L Stainless

1325-1075-T

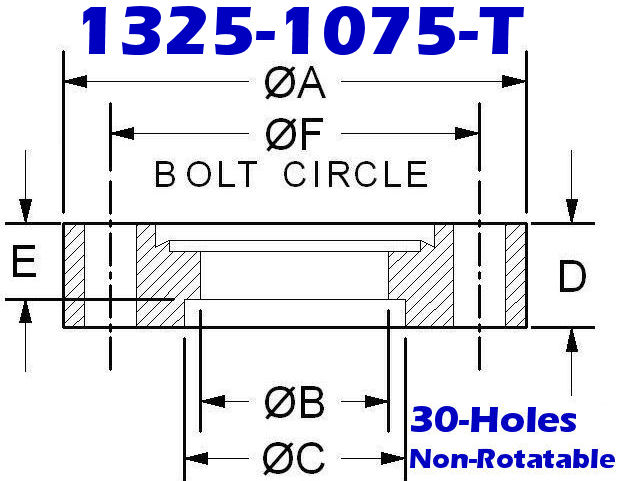

13.25" OD Conflat Flange to 10.75" Tube OD
CF Bored Blank (Tapped Holes)
• A: 13.25"
• B: 10.50"
• C: 10.765"
• D: 1.12"
• E: 0.50"
• F: 12.06"
• 20 lbs.

13.25" OD Conflat Flange (CF 1325)
• Non-Rotatable
• 30 Tapped Holes (3/8-24 Thread)
• 304 Stainless

13-1/4" OD Conflat Equivalent Names:
• CF1325, DN275, DN275CF, NW275CF, 1325CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
13.25" OD (DN275CF) Non-Rotatable Tapped CF Flanges
1325-1075-T Compare to: F1325X1075NT 5000177 CF1325T-1075 F13251075T 130036



13.25" OD Conflat - Rotatable Series		Shop all 13.25" OD Conflat Hardware

**13.25" OD Conflat Flange Accessories Below**
13.25" OD Copper Gaskets
13.25" OD Conflat Flange Viton Gaskets
13.25" OD Conflat – TAPPED Flange Bolt Kit
