Straight Reducer <br> (NW40xISO200)

NW40 To ISO200 Straight Reducer

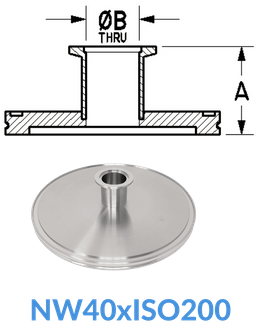

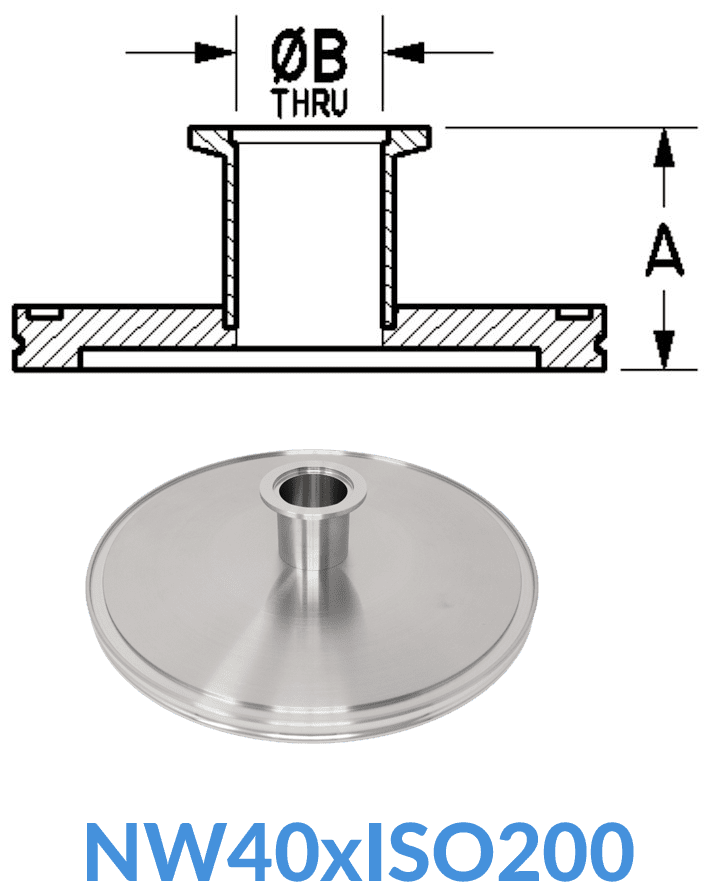

A: 1.82"
B: 1.37"
Tube OD: 1.50"
304 Stainless

NW40xISO200
NW40xISO200 Straight Reducer
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO200xNW40)
• High Vacuum Fitting
• OD Polish

NW40 to ISO200 Straight Reducing Nipple Adapter

ISO200 (ISO-K) Series
• High Vacuum Flange OD: Ø9.45"
• ISO-K Claw Clamp Style

ISO200 High Vacuum Flange Equivalents:
ISO-200, LF200, NW200, NW-200, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40xISO200 Compare to: QF40XLF200 QF200XQF40 P1011324 KF40xISO200 ISO200xKF40 NW40xISO200-VE ISO200xNW40-VE



ISO200 Series Hardware		All NW40 Hardware



NW40 to ISO Straight Reducers		NW Series to ISO Conical Reducers

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps

** ISO200 Flange Accessories Available Below **
ISO Series Claw Clamps
ISO200 Centering Rings
ISO200 Plastic Caps
