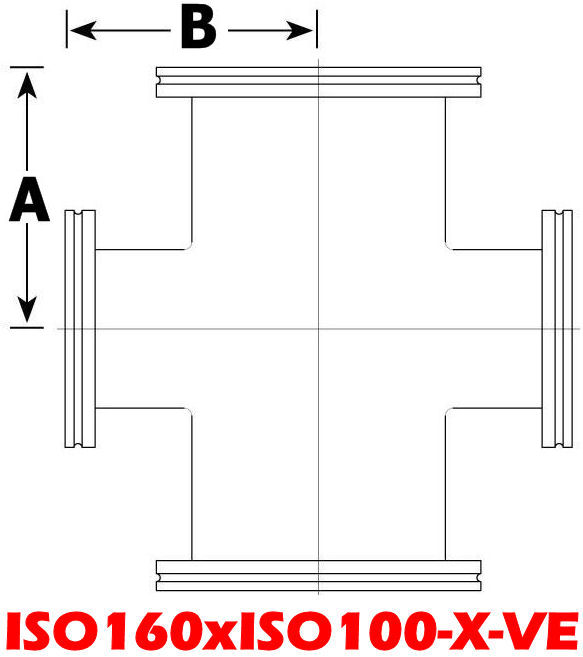

ISO160 to ISO100 Reducing Cross
A: 5.88"
B: 5.43"

ISO160 to ISO100 Reducing Cross
4-Way Reducer Cross
Vacuum Essential

• 304 Stainless
Mill Scale Finish (Unpolished)
No Cancel, No Return Item

ISO100 (ISO-K) Series
• High Vacuum Flange OD: Ø5.12"
• Tube OD: 4.00"
• ISO-K Claw Clamp Style

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange, MF

ISO160 (ISO-K) Series
• High Vacuum Flange OD: Ø7.09"
• Tube OD: 6.00"
• ISO-K Claw Clamp Style

ISO160 High Vacuum Flange Equivalents:
ISO-160, LF160, NW160, NW-160, Large Flange, MF

Reducing Cross - ISO160xISO100-X-VE
ISO160xISO100-X-VEPrice: $1,458.00Sale: $938.00

Click to enlarge
Click to enlarge
ISO100 Series Hardware

ISO160 Series Hardware

Click to enlarge
Click to enlarge
All ISO Crosses

ISOxISO Adapters

ISO100 High Vacuum Flange OD: 5.12"
ISO160 High Vacuum Flange OD: 7.09"

This Vacuum Essential Includes
ISO100 to ISO160 Reducing Cross

Aluminum Double Claw Clamps:
8 each (ISO63-100-DC)
8 each (ISO160-250-DC)

Stainless Centering Rings With Viton O-Ring:
1 each (ISO100-400-SR-V)
2 each (ISO160-600-SR-V)
