NW40 Short Weld Stub Flange <br> (NW40-150-SS)

NW40-150-SS
NW40 Short Weld Stub Flange
Tube Size: 1.50"

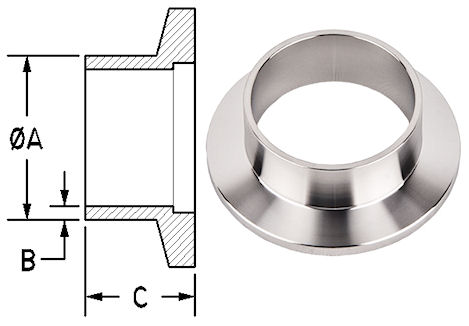

• A: 1.50"
• B: 0.065"
• C: 0.75"

NW40 Short Weld Stub High Vacuum Flange
NW40 (KF40) Butt Weld Flange
Tube Size: 1-1/2"
• 304 Stainless
• Accepts Standard Inch Tubing

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-140-SS Compare to: QF40-140-SS 100310305 4000125 713022 P101268 QF40-150-SST QF40-150-HNM-0.75 KF-BWS-40
