2.12" OD Conflat Flange
Right Angle Valve
Pneumatically Actuated
Air Open, Spring Close
Viton® Seals

PRV-CF212-VE

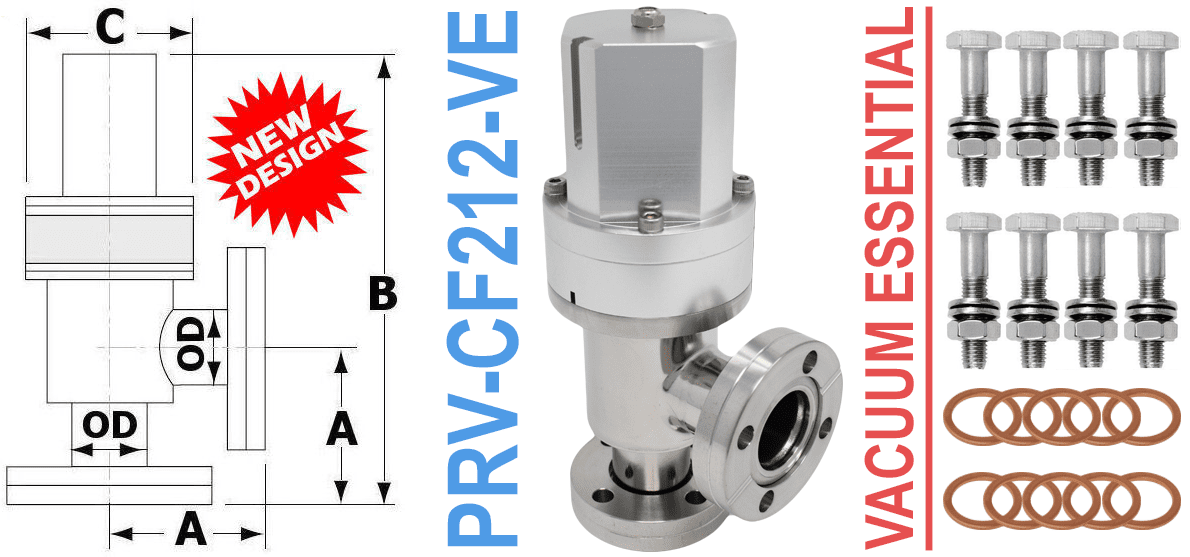

2-1/8" OD Conflat Right Angle Vacuum Valve
Pneumatic Bellows Sealed SS Angle Valve
Air Open, Spring Close
Vacuum Essential

• High Vacuum Valve
• Viton Seals (Fluorocarbon, FKM)
• HV Elastomer Sealed Poppet Valves
• Bellows Sealed SS Angle Valve
• A: 2.05"
• B: 6.12"
• C: 2.39"
• Additional Product Details on Page Bottom

Former PN: PRV-212V-VE

2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
PRV-CF212


Pneumatic Right Angle Valve
2.12" OD Conflat
(PRV-CF212-VE)

PRV-CF212-VE$447.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


Conflat Valves (All)


Click to enlarge
Click to enlarge
24VDC Solenoid Valve Kit
(SVK-DC24-200)



110VAC Solenoid Valve Kit
(SVK-VAC110-200)



Click to enlarge
Click to enlarge
Reed Style Position Indicator


LDS Valves (All)



PRV-CF Series - New Design Features

Pneumatic connection:

1/8” NPT-F

Mounting position:

Any

Operating pressure range:

1000 Torr ~ 1x10-8 Torr

Leak rate:

1 x 10-9 Torr l/s, He

Pneumatic operating pressure:
(Minimum ~ Maximum)

4 bar ~ 5.5 bar
60 psi ~ 80 psi

Temperatures



Valve body:

250°C Open, 200°C Closed

Actuator

100°C

Bake-out:

100°C

Materials



Feedthrough:

Welded Bellows in AM350

Valve body:

SUS304/304L

Mechanism:

SUS304/304L

Actuator:

Aluminum


**This Vacuum Essential Includes**
Pneumatic Right Angle Valve, 2.12" Conflat
• 2-Bolt Kits (212-BK Series)
• 10-Copper Gaskets (212-CG Series)
