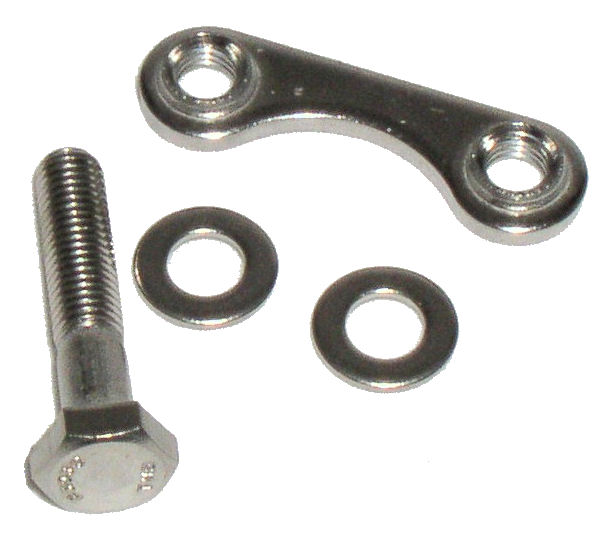

Plate-Nut Conflat Bolt and Washer Kits
PNK Bolt Kit Series

• CF Conflat Flange UHV Hardware
• 18-8 Stainless Bolts
• CF Conflat Flange Clearance (Thru) Hole Bolt Kits

Fits ONLY:
✓ Clearance (Through) Bolt Hole Conflat Flanges
✓ Single Sided CF Conflat Flanges
✓ All CF Elbows, Tees and Crosses


Plate Nuts allow two adjacent bolts to be coupled to a single nut piece. A must for areas where accessibility is limited and reduced access does not allow enough clearance for tools.

Maximum Torque for Vacuum Tight Seals

1.33" OD

5 ft/lbs.

2.12" -2.75" OD

16 ft/lbs.

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts





Bolt, Plate-Nut & Washer <br> Kit Fits: 1.33" OD Conflat <br> Clearance (Thru) Hole <br> (133-PNK)
Bolt, Plate-Nut & Washer <br>Kit Fits: 2.75" OD Conflat <br> Clearance (Thru) Hole <br> (275-PNK)
Bolt, Plate-Nut & Washer
Kit Fits: 1.33" OD Conflat
Clearance (Thru) Hole
(133-PNK)


$10.00
Bolt, Plate-Nut & Washer
Kit Fits: 2.75" OD Conflat
Clearance (Thru) Hole
(275-PNK)


$12.00
Bolt, Plate-Nut & Washer <br>Kit Fits: 3.38" OD Conflat <br> Clearance (Thru) Hole <br> (338-PNK)
Bolt, Plate-Nut & Washer <br>Kit Fits: 4.50" OD Conflat <br> Clearance (Thru) Hole <br> (450-PNK)
Bolt, Plate-Nut & Washer
Kit Fits: 3.38" OD Conflat
Clearance (Thru) Hole
(338-PNK)


$22.00
Bolt, Plate-Nut & Washer
Kit Fits: 4.50" OD Conflat
Clearance (Thru) Hole
(450-PNK)


$24.00
Bolt, Plate-Nut & Washer <br>Kit Fits: 4.62" OD Conflat <br> Clearance (Thru) Hole <br> (462-PNK)
Bolt, Plate-Nut & Washer <br>Kit Fits: 6.00" OD Conflat <br> Clearance (Thru) Hole <br> (600-PNK)
Bolt, Plate-Nut & Washer
Kit Fits: 4.62" OD Conflat
Clearance (Thru) Hole
(462-PNK)


$29.00
Bolt, Plate-Nut & Washer
Kit Fits: 6.00" OD Conflat
Clearance (Thru) Hole
(600-PNK)


$44.00
Bolt, Plate-Nut & Washer <br>Kit Fits: 8.00" OD Conflat <br> Clearance (Thru) Hole <br> (800-PNK)
Bolt, Plate-Nut & Washer <br>Kit Fits: 10" OD Conflat <br> Clearance (Thru) Hole <br> (1000-PNK)
Bolt, Plate-Nut & Washer
Kit Fits: 8.00" OD Conflat
Clearance (Thru) Hole
(800-PNK)


$49.00
Bolt, Plate-Nut & Washer
Kit Fits: 10" OD Conflat
Clearance (Thru) Hole
(1000-PNK)


$70.00
