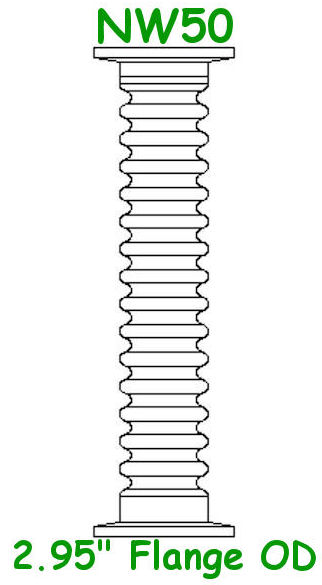

Click to enlargeNW50 Flexible Metal Hose
A: 30"

NW50-200-MH30
NW50 to 30" Flexible Metal Hose (Bellows)
30" OAL

• NW50 (KF50) Flange OD: Ø2.95"
• Nominal Hose ID: 2"
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• NW50 Flexible Coupling (Nipple)
• Thin Wall: 0.006"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF

Image Shown For Reference Only
NW50-200-MH30 Compare to: MHT-QF-D30


30" Flexible Metal Hose
(NW50-200-MH30)

NW50-200-MH30Price: $441.00Sale: $219.00

Click to enlarge
Click to enlarge
Thin Wall
Additional Lengths, NW50



Medium/Thick Wall
Additional Lengths, NW50



Click to enlarge
All NW50 Hardware



NW50 Flange OD: Ø2.95"
NW50 Hose ID: 2.00"

***NW50 Flange Accessories Available Below***
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps
