Click to enlargeNW25 to 1/2" Male NPT
Aluminum
Wrench Flats: 0.87"
Thru: 0.50"
1.50" OAL
VACUUM ESSENTIAL

NW25x50NPTA-VE
NW25 (KF25) Male NPT
• 0.50" Male Pipe Adapter (NPT)
Vacuum Essential

• 6061 T6 Aluminum
Reference Only Photo

NW25 to 1/2" Male Pipe Adapter (NPT, MNPT)
• NW25 (KF25) Male National Pipe Thread Adaptor

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
NW25x50NPT-A-VE


NW25 to 1/2" Male NPT
(NW25x50NPTA-VE)

NW25x50NPTA-VE$41.00

Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW25 Male NPT (Aluminum)


NW25 Male NPT (Stainless)


Click to enlarge
Click to enlarge
NW Female NPT


NW25 Ring and Clamp Assembly



NW25 Flange OD: Ø1.57"

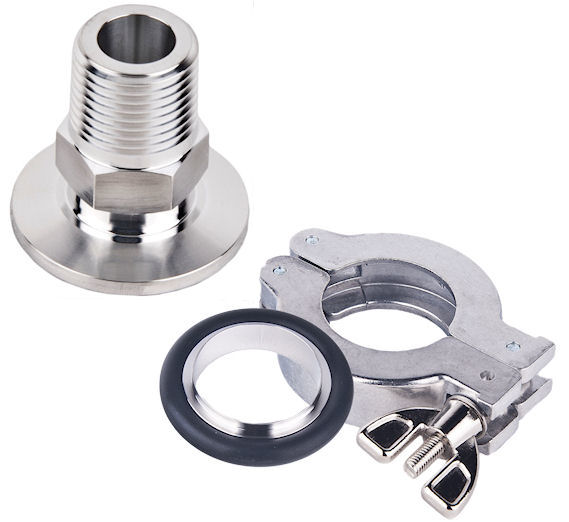

***This Vacuum Essential Includes***
• NW25 to Male NPT, Aluminum: NW25x50NPT-A
1-Aluminum Wing Clamp (NW25-100-CW)
1-Stainless/Viton Centering Ring (NW25-100-SR-V)
