Click to enlargeNW25 to 0.25" Male NPT
OAL: 1.27"

NW25x25NPT-VE

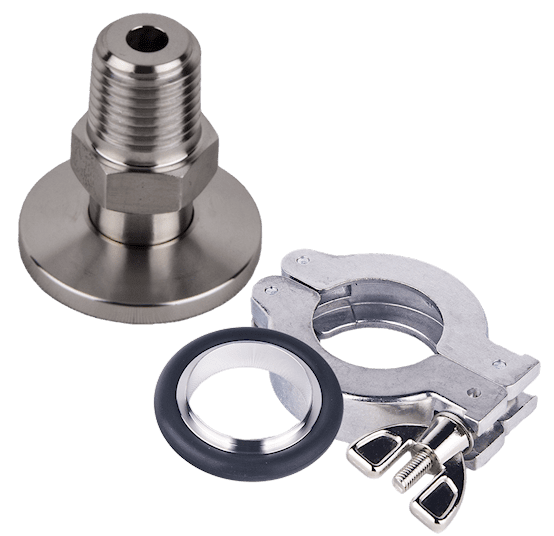

NW25 to 0.25" Male Pipe Adapter (NPT)
Vacuum Essential

• NW25 (KF25) OD: Ø1.57"
• 1/4" Male Pipe Adapter (NPT)
• 304 Stainless
Reference Only Photo

NW25 to Male Pipe Adapter (NPT, MNPT)
• NW25 Centering Ring Counter Bore: 1.03"
• NW25 Male National Pipe Thread Adaptor

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF

Teflon tape recommended to seal thread
NW25x25NPT


NW25 to 1/4" Male NPT
(NW25x25NPT-VE)

NW25x25NPT-VE$51.00

Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW25 Male NPT (Stainless)


NW25 Male NPT (Aluminum)


Click to enlarge
Click to enlarge
NW Female NPT


NW25 Ring and Clamp Assembly



NW25 Flange OD: Ø1.57"

***This Vacuum Essential Includes***
• NW25 to Male NPT, Stainless: NW25x25NPT
1-Aluminum Wing Clamp (NW25-100-CW)
1-Stainless/Viton Centering Ring (NW25-100-SR-V)
